Control 414C/T Micro

Pengeras Suara Plafon Dua-Arah 4" dengan Penutup Profil Rendah

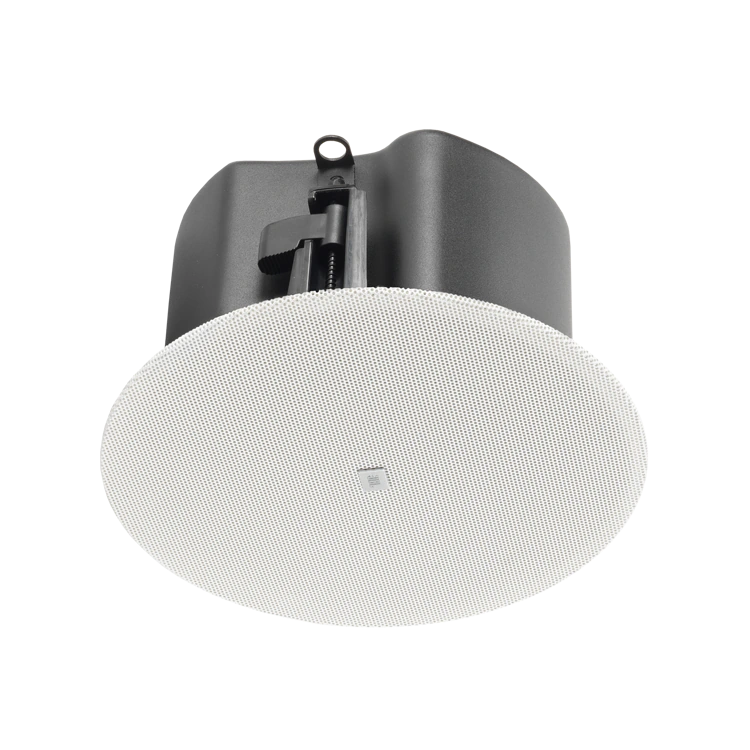

Control 414C/T Micro
Gambar Lebih Besar

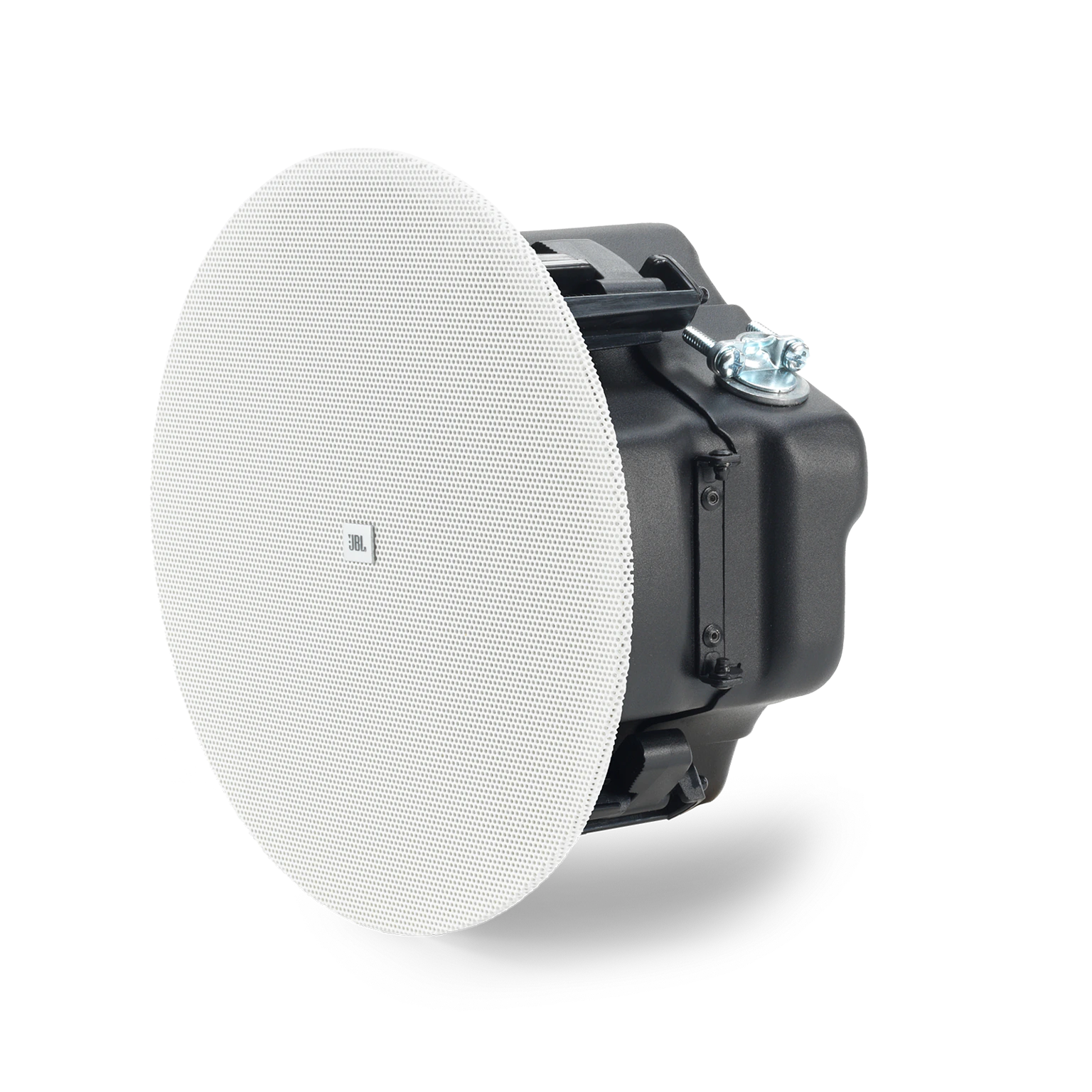

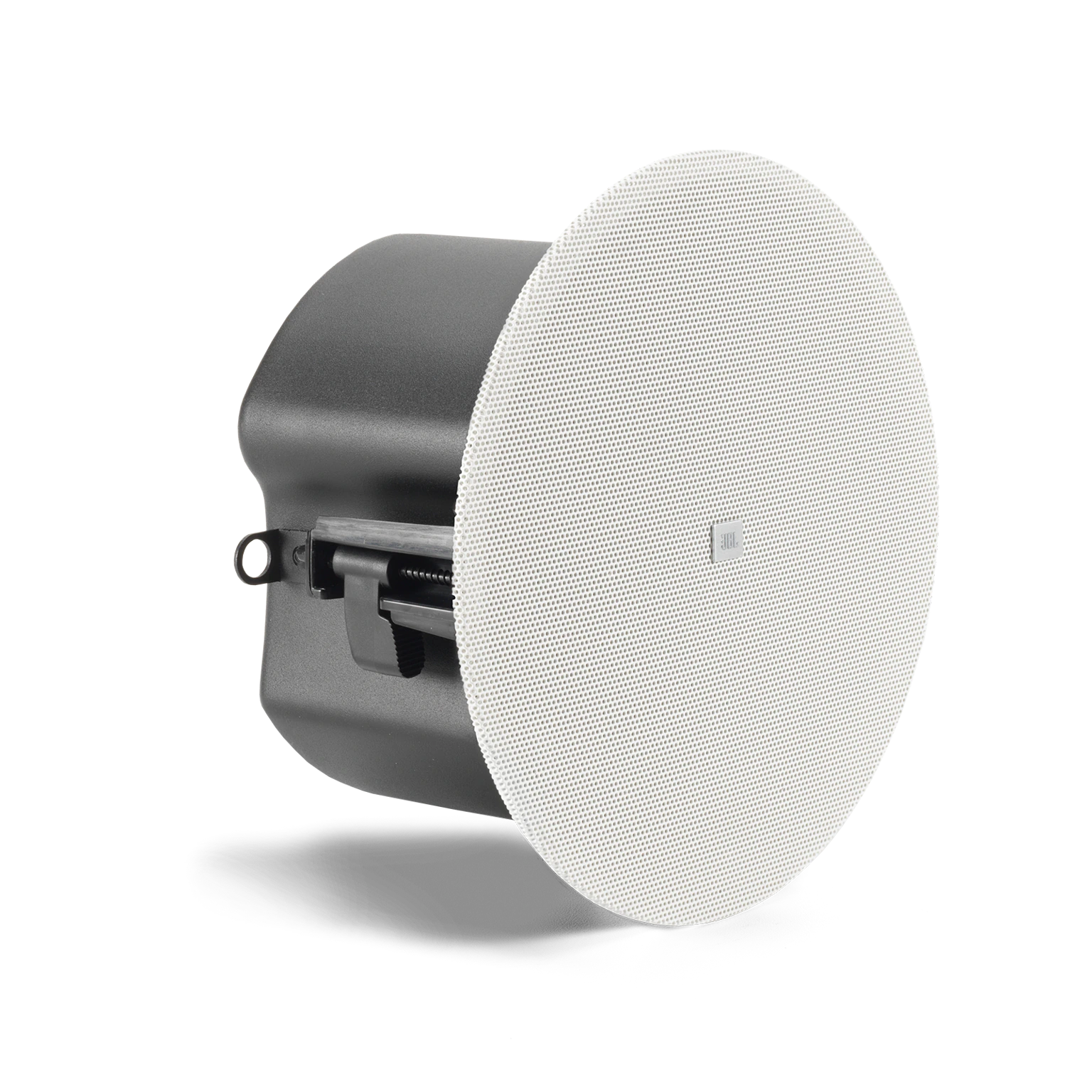

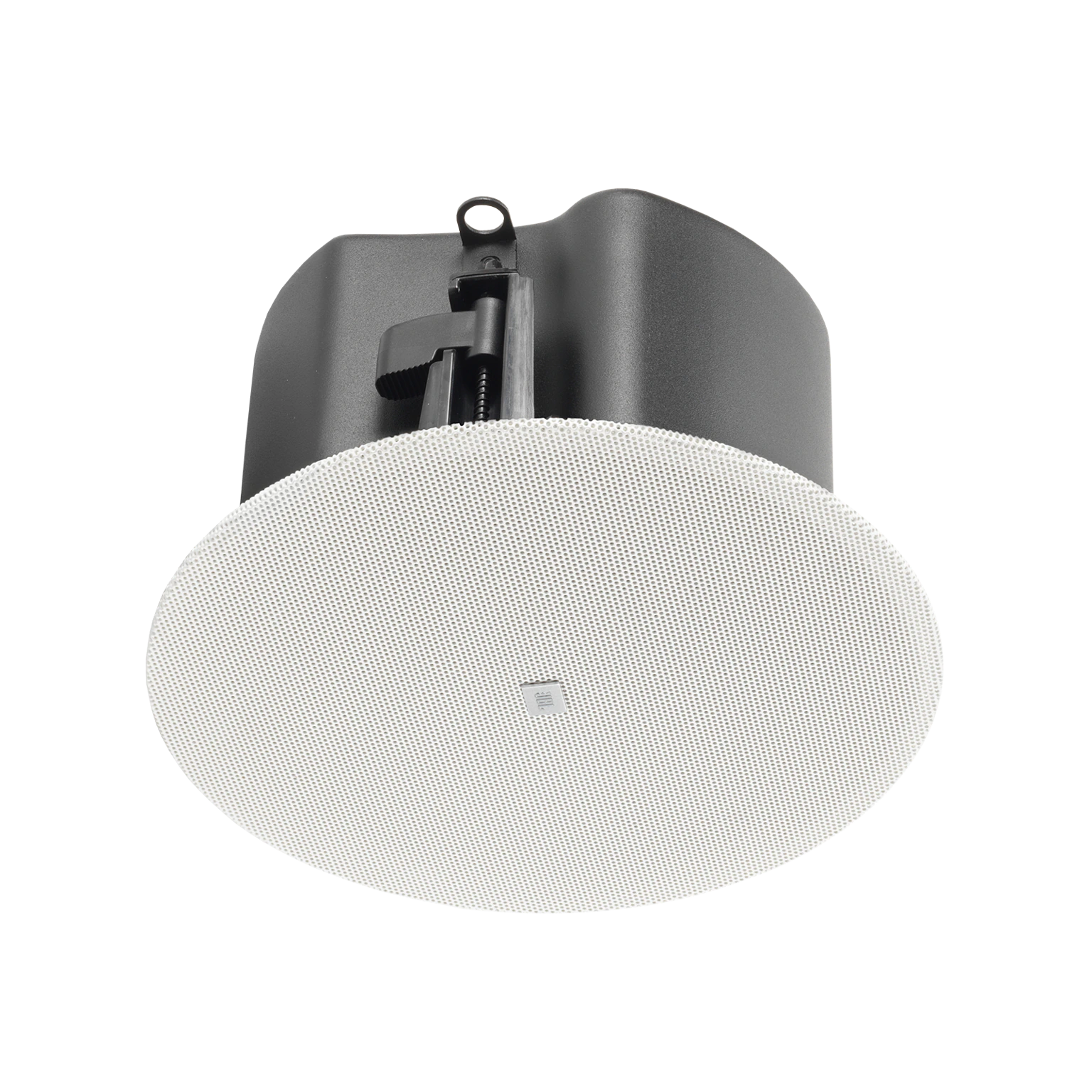

JBL Control 414C/T Micro, bagian dari Control 400 Standard Coverage Series, adalah loudspeaker ceiling dua arah yang dilengkapi dengan woofer 4" dan enclosure profil rendah yang ideal untuk aplikasi di mana ruang plenum ceiling terbatas.

Semua model Control 400 Series dirancang untuk menyatu dengan mulus ke interior modern. Grille magnetik full-face yang disertakan dapat dicat untuk integrasi ke dalam dekorasi apa pun, sementara grille bulat hitam dan persegi putih yang tersedia memberikan kustomisasi tambahan.

Control 414C/T Micro mencakup fitur instalasi yang dirancang dengan cermat untuk meningkatkan keselamatan, efisiensi, dan repeatability. Terminal cover memungkinkan masuk kabel yang nyaman dari atas atau samping dan desain captive dogear yang handal mengakomodasi berbagai ketebalan ceiling, memastikan keserbagunaan untuk lingkungan apa pun. Selain itu, Control 414C/T Micro mendukung aplikasi 70V/100V dan low impedance.

  • EFFICIENT, FLEXIBLE INSTALLATION

    Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  • REFINED, MODERN AESTHETICS

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

featured content

EFFICIENT, FLEXIBLE INSTALLATION

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

featured content

REFINED, MODERN AESTHETICS

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Fitur

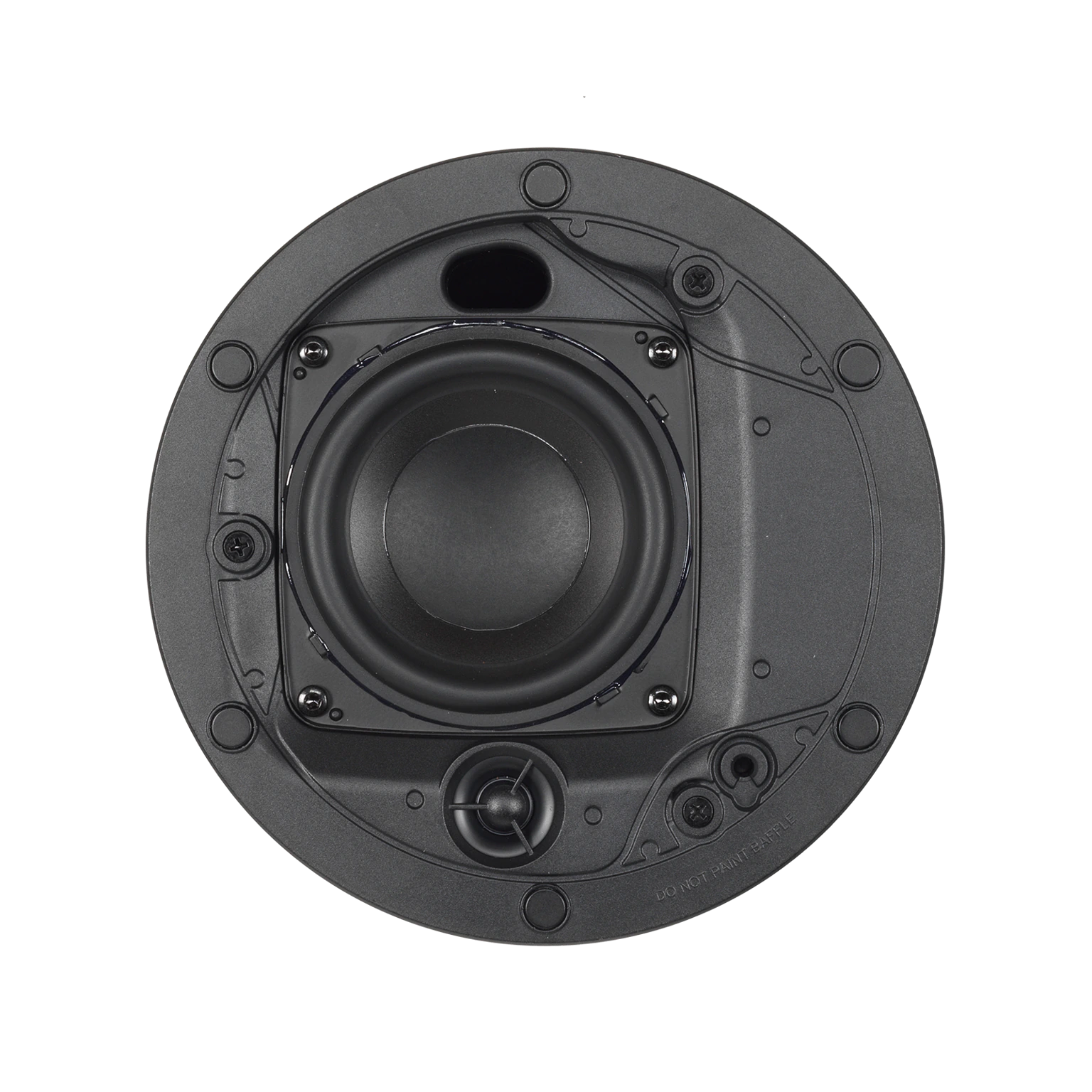

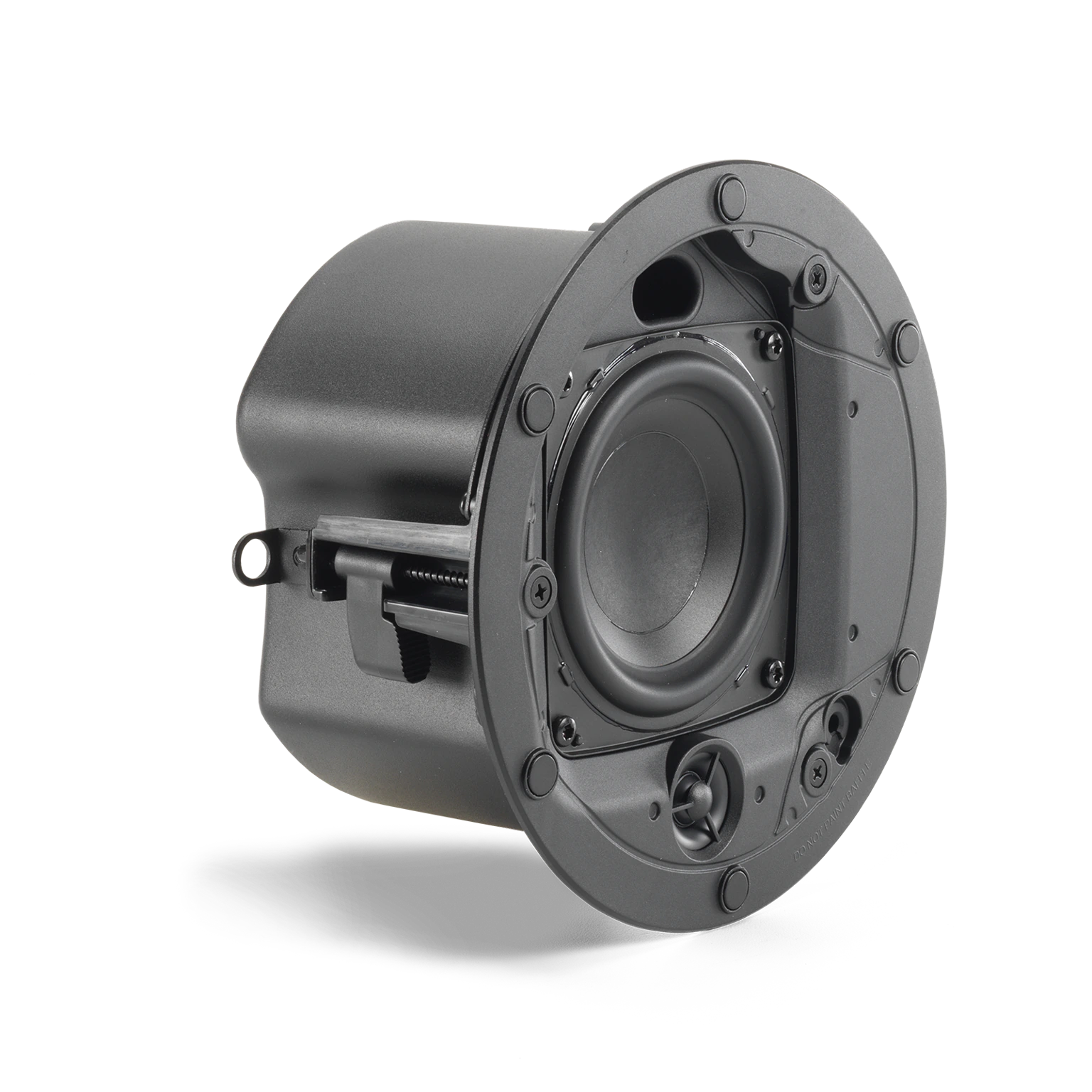

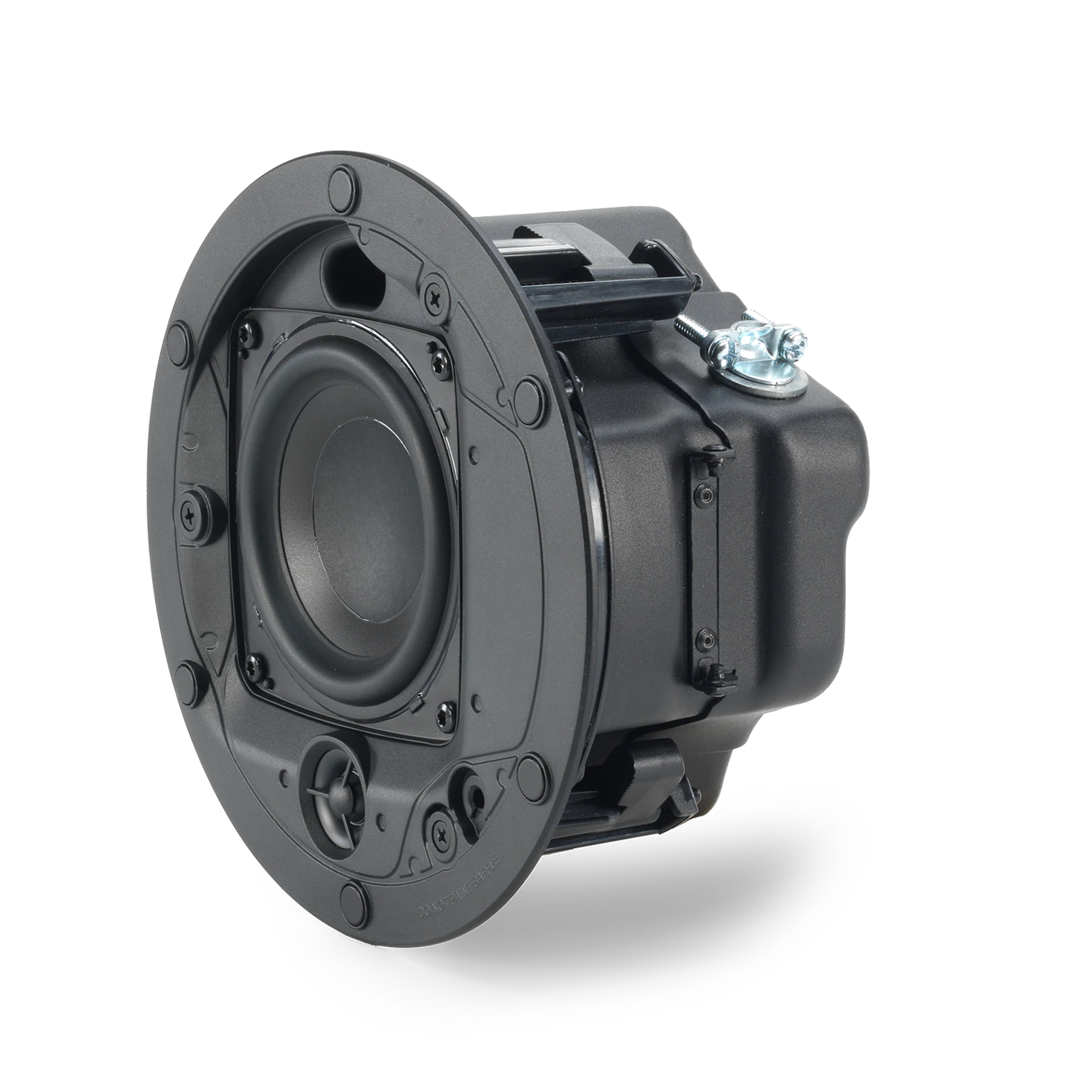

  • 100 mm (4 in) woofer and 12mm (0.5 in) PEI dome tweeter
  • Shallow 105 mm (4.13 in) depth
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
  • Full-face, easily paintable magnetic grilles
  • Top and side cable entry options

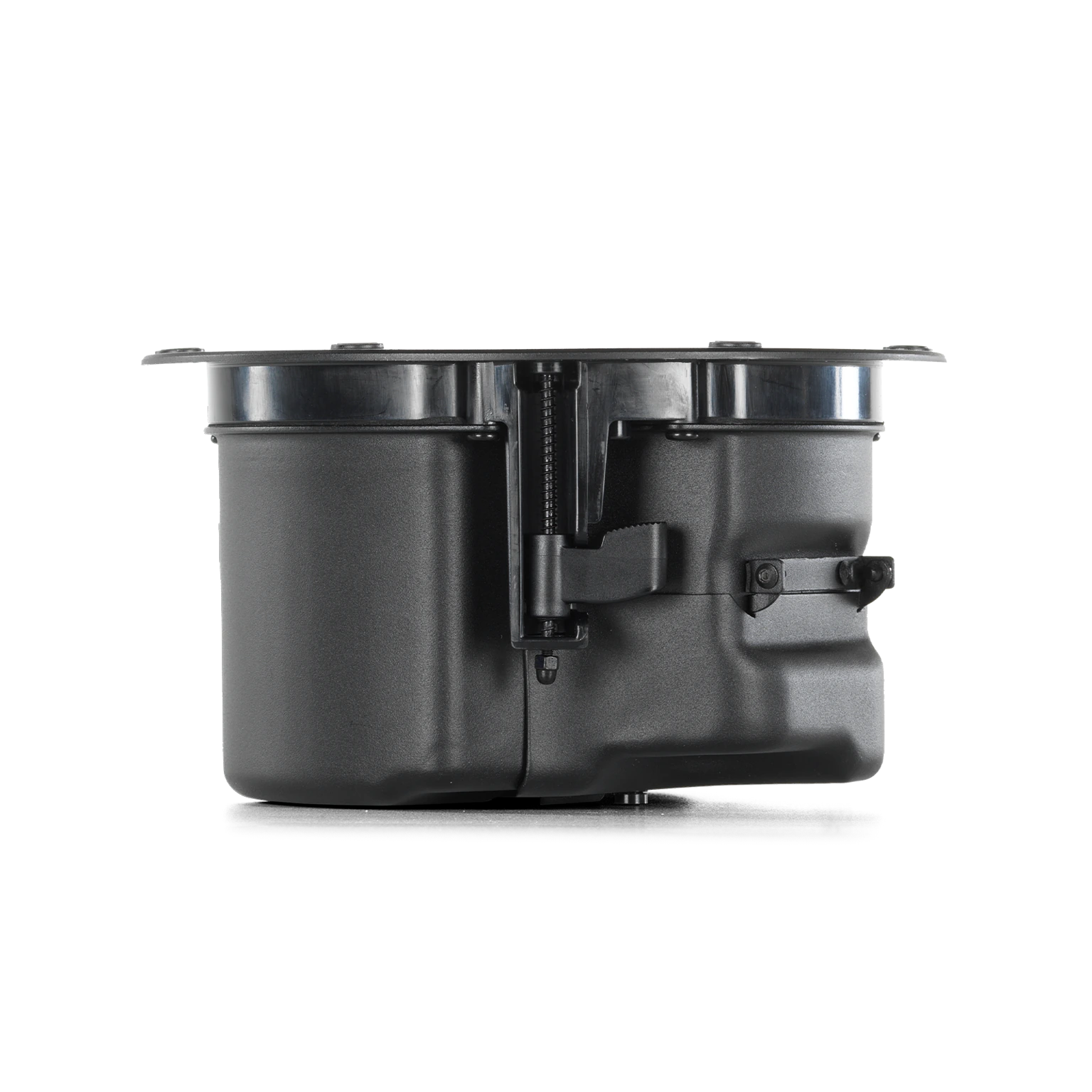

  • Robust and adaptable dogears for wide range of ceiling thicknesses
  • IP32 rated

Unduhan

Specifications
  Bahasa Ukuran Diunggah
file type icon Control 414C/T Micro Spec Sheet
en diperbarui: Agu 2025
en  1,12 MB Agu 2025
Manuals
  Ukuran Diunggah
5,27 MB Agu 2025
Brochures
  Ukuran Diunggah
file type icon 2025 Control 400 Family Brochure
diperbarui: Agu 2025
3,9 MB Agu 2025
CAD Drawings
  Ukuran Diunggah
7,94 MB Agu 2025
Compliances
  Ukuran Diunggah
466 KB Jan 2026
537 KB Jan 2026
Software
  Versi Ukuran Diunggah
Windows download icon Distributed System Design (DSD)
versi 3.9, diperbarui: Nov 2025
3.9   612 KB Nov 2025
Technical Papers
  Ukuran Diunggah
768 KB Nov 2025
Ease Data
  Ukuran Diunggah
326 KB Okt 2025
file type icon Control 414C/T Micro - EASE GLL
diperbarui: Agu 2025
706 KB Agu 2025
Speaker Tunings
  Ukuran Diunggah
441 KB Agu 2025
Accessories
  Versi Ukuran Diunggah
file type icon Ceiling Speaker Accessory Guide
versi 2026-04, diperbarui: Mei 2026
2026-04  570 KB Mei 2026

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10 dB) 69Hz - 25kHz
Power Capacity 22.5 W (90 W Peak), Cont. Pink Noise (2 hrs)
15 W (60 W Peak), Cont. Pink Noise (100 hrs)
Sensitivity (1m/1W) 86dB
Coverage Angle 160° conical
Maximum SPL (1m) 98 dB continuous pink noise (104 dB peak)
Nominal Impedance
Transformer Taps 70 V: 10 W, 5 W, 2.5 W, 1.2 W & 0.6 W
100 V: 10 W, 5 W, 2.5 W & 1.2 W
Drivers LF: 103 mm (4 in) with PP cone and paper cup, SBR surround
HF: 13 mm (0.5 in) PEI dome
Ceiling Cutout Size 168 mm (6.6 in)
Dimensions 114 mm (4.6 in) H x 203 mm (8.1 in) dia.
105 mm (4.2 in) from bottom of ceiling tile to top of backcan
Safety Agency Rating Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
Environmental IP rating: IP32 per EN/IEC 60529.
Operating temperature: 0° C to 45 °C.
Optional Accessories JBL-MTC-414BG black (RAL9004) round grille
JBL-MTC-414SG white (RAL9003) square grille
JBL-MTC-414WG weather grille
JBL-MTC-424NC new construction bracket
JBL-MTC-424MR mud-ring construction bracket
JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
Color Stock grille is White (RAL9003), paintable
Net Weight (ea) 2.11 kg (4.65 lbs)
Shipping Weight (pair) 8.58 kg (18.92 lbs)
SKU Numbers JBL-C414MC/T
