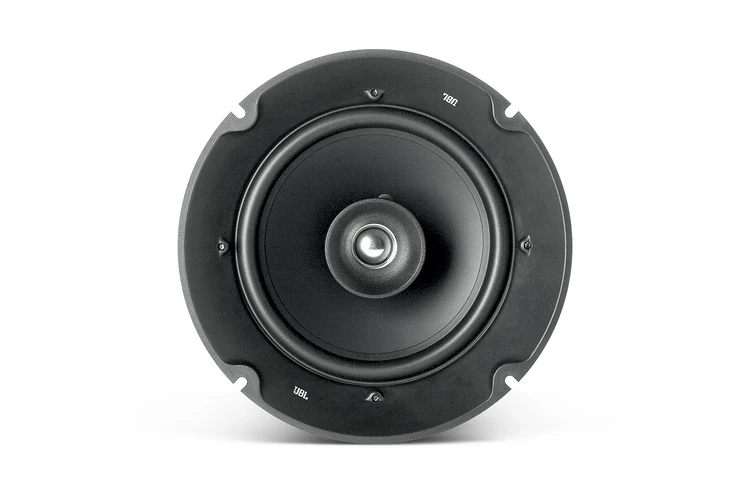

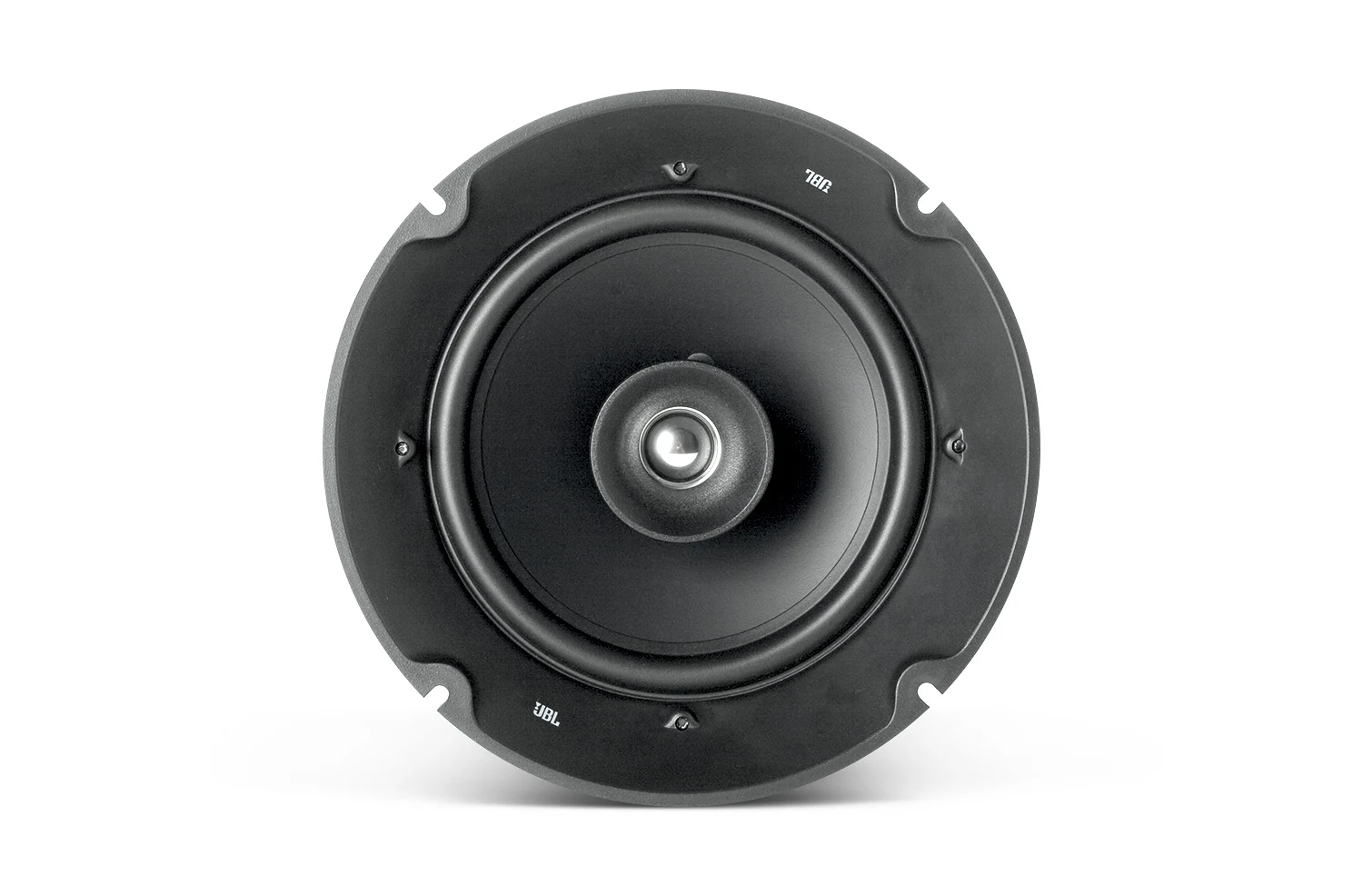

6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8") drivers.
Gambar Lebih Besar
Fitur
- Use instead of standard 8" driver. Fits standard backcans for 8" speakers.
- Comes complete with transducer, network and transformer.
- Advanced crossover network provides natural sound and even coverage throughout listening area.
- 60 W transformer for 70 V or 100 V distributed speaker lines.
- Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.
Unduhan
Data Sheets
| Ukuran | |
|
|
450 KB |
Manuals
| Ukuran | |
|
|
41,7 KB |
|
|
127 KB |
|
|
164 KB |
Brochures
| Ukuran | |
|
|
23 MB |
|
|
21 MB |
versi A,
diperbarui: Mar 2026
Compliances
| Ukuran | |
|
|
179 KB |
|
|
131 KB |
Software
| Ukuran | |
|
|
11,3 KB |
|
|
612 KB |
Simulation Data
| Ukuran | |
|
|
24 MB |
Related Products
| Ukuran | |
|
|
22,9 KB |
Speaker Tunings
| Ukuran | |
|
|
557 KB |
Install Guides
| Ukuran | |
|
|
52,4 KB |
|
|
23,9 KB |
Images
| Ukuran | |
|
|
954 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Suku Cadang & Servis
Spesifikasi
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 60W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 90° conical |
| Directivity Index (DI) | 4.6 averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 106 dB (top 70V/100V tap) |
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (¾ in) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Outside Dimensions (H x Dia) | 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan |
| Net Weight (each) | 4.2 kg (10 lb) |
| Shipping Weight (pair) | 9.7 kg (21 lb) |
| Sensitivity | 89 dB (100 Hz - 10 kHz) |
| Safety Agency | In accordance with IEC60849 / EN60849. |
| Plenum Usage | Requires third-party plenum rated backcan |
