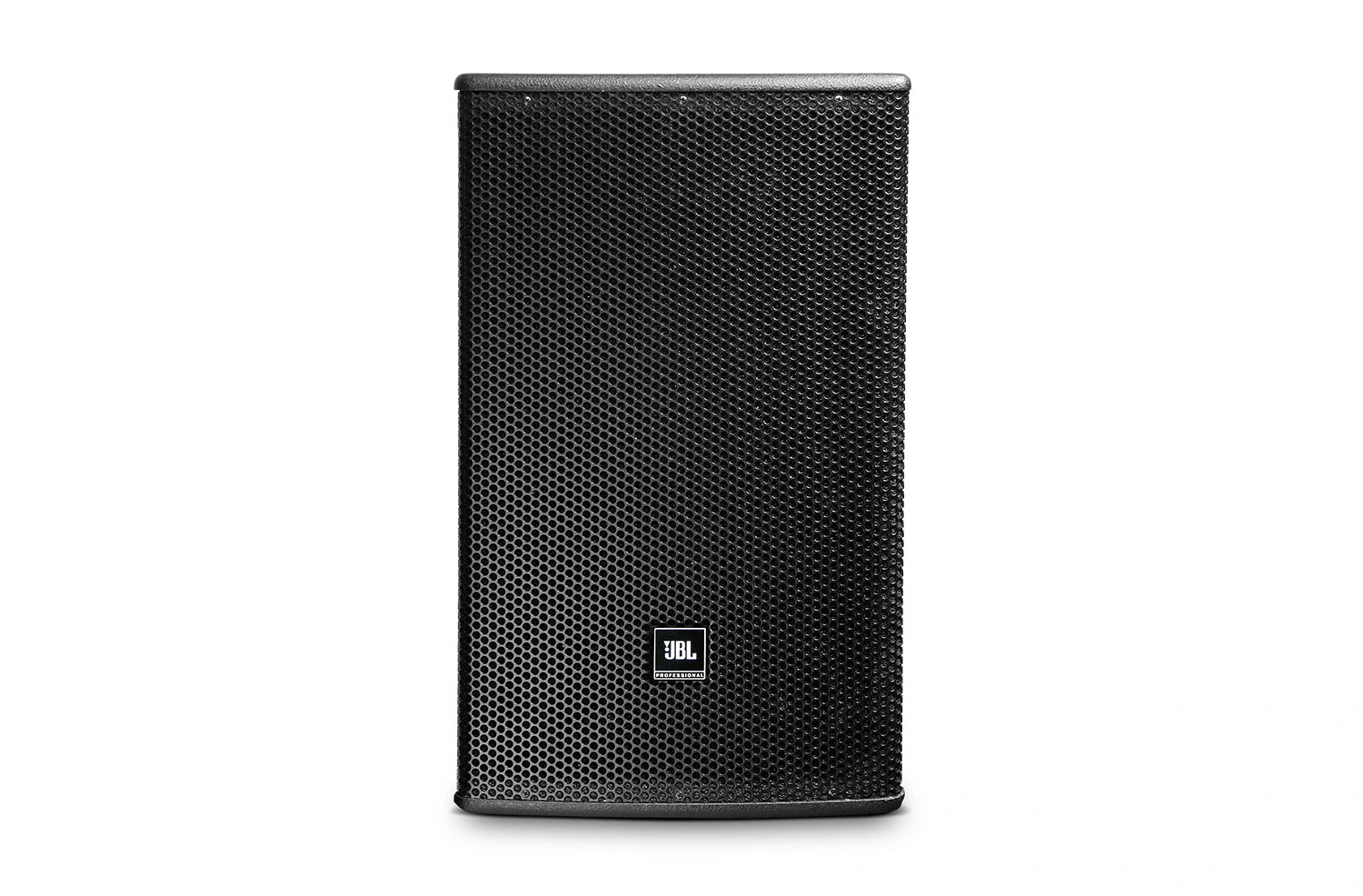

JBL Professional AC299

Gambar Lebih Besar

Speaker 2-Arah 12 Inci dengan Horn 90° x 90°

AC299 adalah sistem loudspeaker full-range 2-arah kompak yang terdiri dari satu driver frekuensi rendah 310 mm (12 in) dan satu driver kompresi 25 mm (1 in) exit/35 mm (1,5 in) voice-coil. Horn menyediakan cakupan 90° x 90° dalam orientasi vertikal dan horizontal. Crossover pasif slope tinggi meminimalkan tumpang tindih band dan respons offaxis yang terkontrol dengan baik. Kabinet dilengkapi dengan titik suspensi M10 berulir. Empat sisipan berulir yang terletak di belakang enklosur memungkinkan pemasangan MultiMount® atau jenis pemasangan serupa. AC299 adalah bagian dari Seri Application Engineered JBL, keluarga loudspeaker serbaguna untuk berbagai aplikasi instalasi tetap.

Fitur

Enklosure kokoh 15mm dengan finishing bertekstur hitam
Transduser LF 310 mm (12 in)
Waveguide 90° x 90° dengan exit 25 mm (1 in) driver kompresi voice-coil 35mm (1.5")
Dual konektor Neutrik NL4 plus terminal sekrup
Titik pengikat ganda untuk fleksibilitas maksimal

Aplikasi

Ruang Pertunjukan
Klub & Bar
Rumah Ibadah
Ruang Multimedia
Ruang Ritel & Perhotelan
Ruang Presentasi
Fasilitas Pendidikan

Unduhan

Specifications

	Ukuran	Diunggah
AC299 Spec Sheet diperbarui: Apr 2019	526 KB	Apr 2019

Brochures

	Bahasa	Ukuran	Diunggah
Loudspeakers for Sports Facilities diperbarui: Jul 2024		5,71 MB	Jul 2024

CAD Drawings

	Versi	Ukuran	Diunggah
AE Expansion Series Customer Drawings versi 1.0, diperbarui: Mar 2025	1.0	5,73 MB	Mar 2025
AE Expansion Series Brackets Customer Drawings versi 1.0, diperbarui: Mar 2025	1.0	438 KB	Mar 2025

Simulation Data

	Versi	Ukuran	Diunggah
AE Expansion Series - EASE GLL versi 1.0, diperbarui: Mar 2025	1.0	315 KB	Mar 2025
AE Expansion Series - CLF Files versi 1.0, diperbarui: Mar 2025	1.0	785 KB	Mar 2025

Declaration of Conformity

	Versi	Bahasa	Ukuran	Diunggah
AE Expansion Series - EU Declaration of Conformity versi 1.0, diperbarui: Mar 2025	1.0		76 KB	Mar 2025

Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.

Suku Cadang & Servis

Spesifikasi

Frequency Range (-10dB)	63 Hz - 20 kHz
Frequency Response (±3 dB)	80 Hz - 18 kHz
System Sensitivity (1w @ 1m)	97 dB
Nominal Impedance	8 ohms
Maximum SPL (1m)	121 dB (127 dB peak)
System Power Rating	350W (1400W peak), 2 hrs (AES rated) 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern	90° x 90° (H x V)
Crossover	1.5 kHz
LF Driver	1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
HF Driver	1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure	15 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment	14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D)	600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
Net Weight (each)	17.3 kg (38.1lbs)
Crossover Modes	Passive
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
