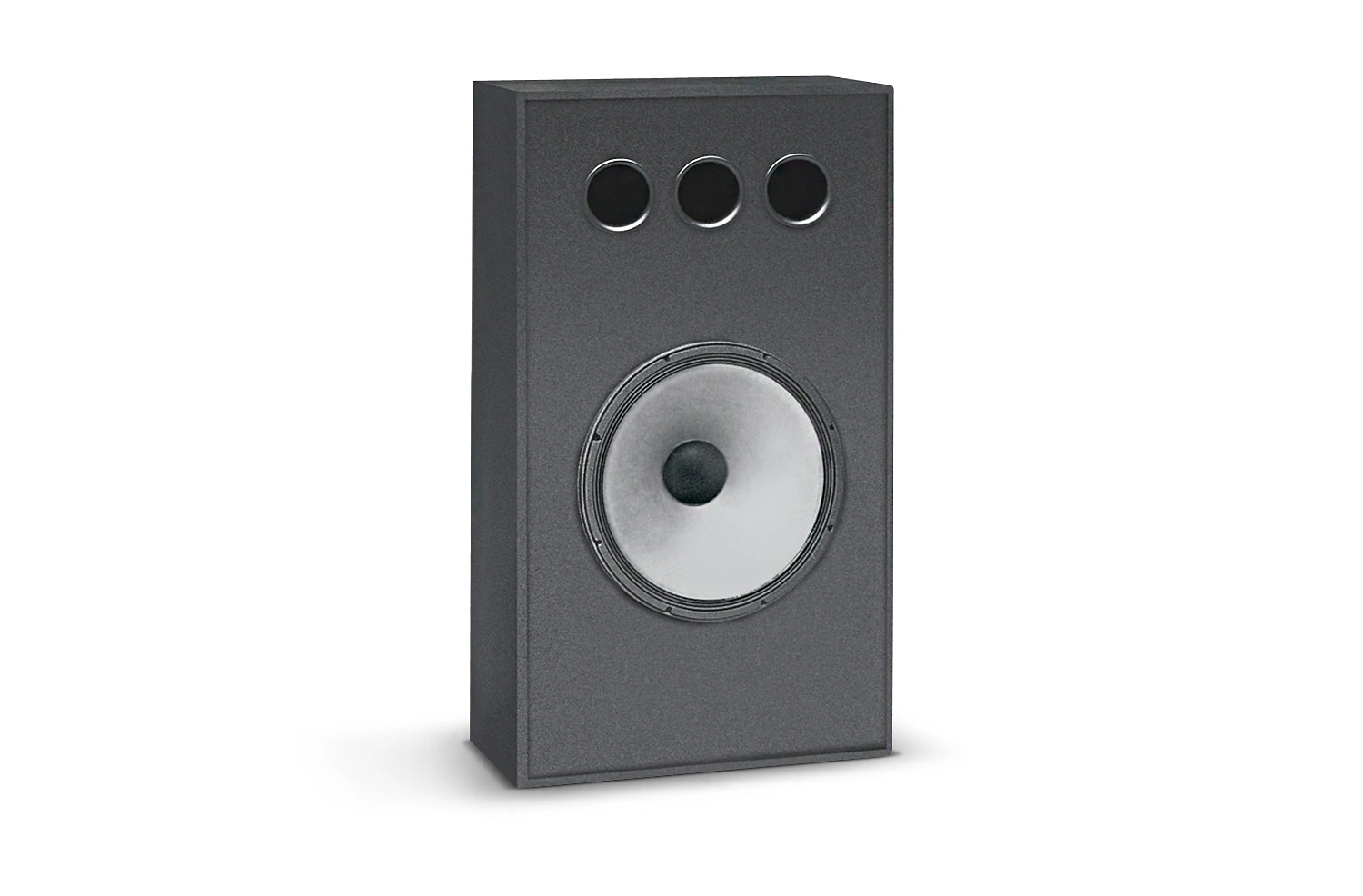

Cinema Subwoofer System
The 3635 subwoofer provides natural low-frequency sound quality for music and dialog in small
cinema applications.
Gambar Lebih Besar
Fitur
- Components: One 460 mm (18 in) low frequency driver.
- Shallow profile cabinet minimizes behind-screen space.
Unduhan
Specifications
| Ukuran | |
|
|
38,9 KB |
CAD Drawings
| Ukuran | |
|
|
110 KB |
Compliances
| Ukuran | |
|
|
144 KB |
Tech Notes
| Ukuran | |
|
|
55 KB |
Information documents
| Ukuran | |
|
|
21,9 MB |
|
|
47,3 KB |
Jika ada tautan di atas yang menampilkan karakter aneh di browser Anda, klik kanan file tersebut untuk menyimpannya ke komputer Anda.
Suku Cadang & Servis
Spesifikasi
| Frequency Range (±3 dB) | 38 Hz - 100 Hz |
| Frequency Range (-10dB) | 28 Hz - 500 Hz |
| Power Handling (2Hr AES Rating) | 300 W |
| Sensitivity | 100 dB |
| Nominal Impedance | 8Ω |
| Recommended Crossover Frequency | 100 kHz |
| Half-Space Reference Efficiency | 5% |
| Maximum Acoustic Power Output | 15 W IEC Standard (Sine Wave Input) |
| System Polarity | Positive Voltage to RED produces forward cone motion |
| Input Connectors | Barrier Strip Screw Terminals |
| Dimensions (H x W x D) | 1168 x 651 x 368 mm (46 x 25.625 x 14.5 in) |
| Net Weight (each) | 113 lb (51 kg) |
| Maximum SPL (1m) | 125 dB |
