JBL Professional PRX615M

Größere Bilder

15-Zoll-Zweiwegelautsprecher mit Eigenversorgung für Verstärkungszwecke

Der 2-Wege-15"-Lautsprecher ist die bekannteste Form tragbarer PA-Lautsprecher und bietet die perfekte Balance zwischen Größe und Leistung. Die PRX615M ist wirklich eine Ausnahme; sie ist kompakt, leicht, vielseitig und leistungsstark.

Eigenschaften

Maximum SPL Output 135db peak
380 mm (15 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium magnet compression driver
1000 Watt (dual 500 watt) Class-D, Crown® digital amplifier
DSP input section with dbx® Type IV™ limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument inputs, with loop through
Integrated 36mm dual-angle pole mount socket
Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
8 M10 Suspension points and 1 pullback point

Applications

The 2-way 15" offers the perfect balance between size and performance. The PRX615M truly is an exception; it’s small, light weight, versatile and powerful. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX600 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX615M delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ, ‘flat’ for speech intelligibility, and ‘boost’ for enhanced bass and crisp highs in recorded music playback. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX600 sub-woofer the system becomes an efficient, full-range sound system.
The PRX615M is comprised of a 380 mm (15 in) 265F Differential Drive® dual voice-coil and magnetic gap, neodymium woofer, a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete
component optimization.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level, via the level control knob.

Downloads

Specifications

	Größe	Hochgeladen
PRX615M Spec Sheet aktualisiert: Okt 2020	582 KB	Okt 2020

Manuals

	Sprache	Größe	Hochgeladen
PRX600 Users Guide - French aktualisiert: Okt 2020		3,68 MB	Okt 2020

Brochures

	Größe	Hochgeladen
PRX600 Brochure aktualisiert: Okt 2020	1,49 MB	Okt 2020

CAD Drawings

	Größe	Hochgeladen
PRX600 Drawings 2D & 3D aktualisiert: Okt 2020	4,8 MB	Okt 2020

User Guides

	Größe	Hochgeladen
PRX600 Users Guide aktualisiert: Okt 2020	4,65 MB	Okt 2020

Images

	Größe	Hochgeladen

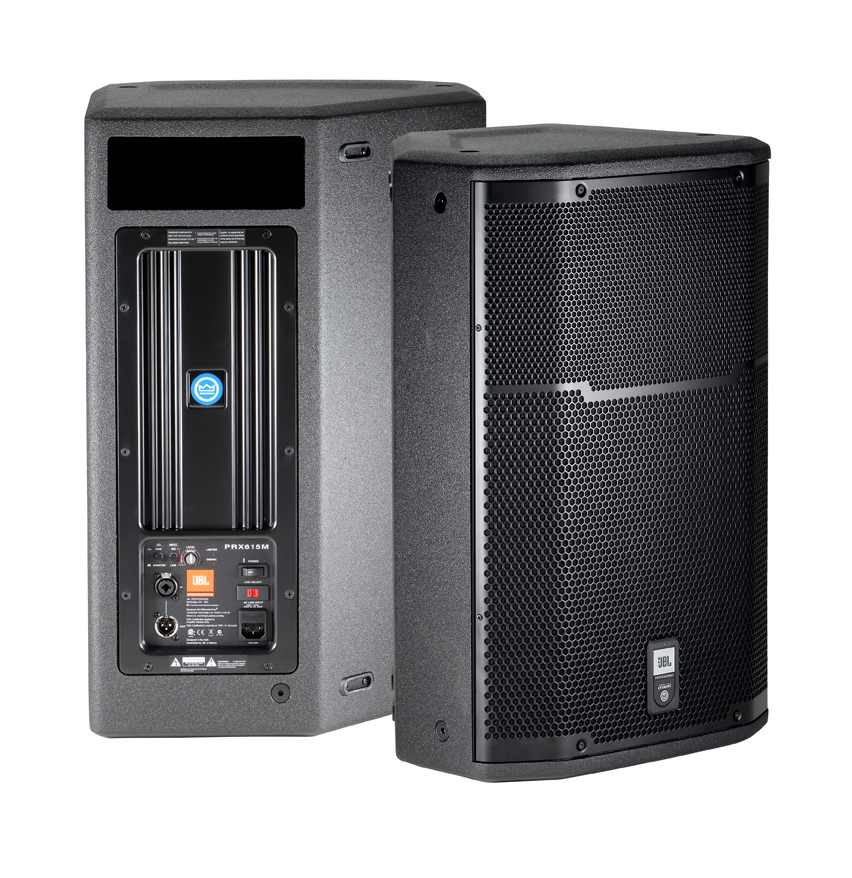

PRX615M Front-Back aktualisiert: Okt 2020	440 KB	Okt 2020

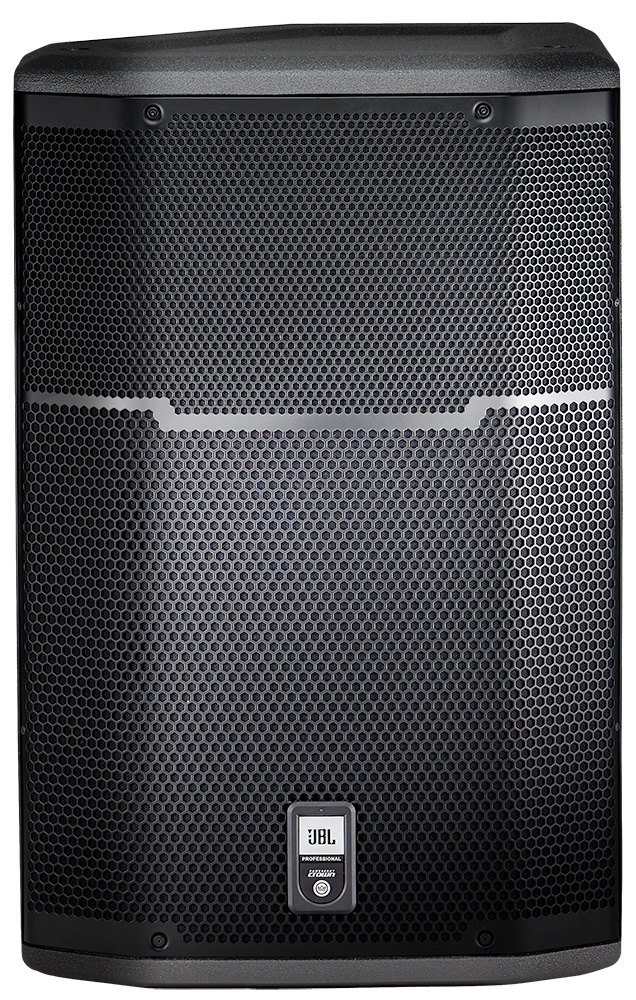

PRX615M Hi Res Photo 2 aktualisiert: Okt 2020	389 KB	Okt 2020

Ease Data

	Größe	Hochgeladen
PRX 600 Ease Data aktualisiert: Okt 2020	203 KB	Okt 2020

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Teile & Service

Spezifikationen

System Type	Self-powered 15", two-way, bass-reflex
Maximum SPL Output	Full Range: 135 dB peakMonitor: 134 dB peak
Frequency Range (-10dB)	Full Range: 45 Hz – 19 kHzMonitor: 48 Hz – 20 kHz
Frequency Response (±3 dB)	Full Range: 54 Hz – 18 kHzMonitor: 60 Hz – 18 kHz
Coverage Pattern	90º x 50º nominal
Amp Design	Crown® Class D
Power Rating	1000 W ( 2 x 500 )
Dimensions (H x W x D)	660 mm x 429 mm x 414 mm ( 26.0 in x 16.9 in x 16.3 in )
Net Weight	19.7 kg ( 43.5 lb )
