PD5200/43 /64 /95
Larger Images

Precision Directivity Mid-High Frequency Loudspeakers

The PD5200 Series Precision Directivity mid-high frequency loudspeakers are designed for applications requiring high output capability with excellent pattern control.


  • High power 200 mm (8 in) dual-coil CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
  • Large format neodymium HF driver provides clear, intelligible high frequency projection.
  • Large PT™ Progressive Transition™ waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response.
  • Rotatable waveguides allow either horizontal or vertical cabinet orientation.


  Version Language Size Uploaded
Data Sheets
file type icon PD5200_64 Spec Sheet
updated: 18. Okt
    528 KB 18. Okt
file type icon PD5200/95 Spec Sheet
updated: 22. Okt
    95 KB 22. Okt
file type icon PD5200/43 Spec Sheet
updated: 16. Jul
    93,5 KB 16. Jul
file type icon PD5200/64 Spec Sheet
updated: 16. Jul
    93,7 KB 16. Jul
file type icon PD5000 Product Range
updated: 18. Okt
    290 KB 18. Okt
CAD Drawings
file type icon PD5000 Series 2D DXF Files
updated: 18. Okt
    2,93 MB 18. Okt
file type icon PD5000 2D CAD
updated: 22. Okt
    4,94 MB 22. Okt
file type icon PD5000 3D CAD
updated: 22. Okt
    170 KB 22. Okt
file type icon PD5000 2D PDF
updated: 22. Okt
    662 KB 22. Okt
file type icon PD5000 Series Declaration of Conformity
updated: 18. Okt
    91,7 KB 18. Okt

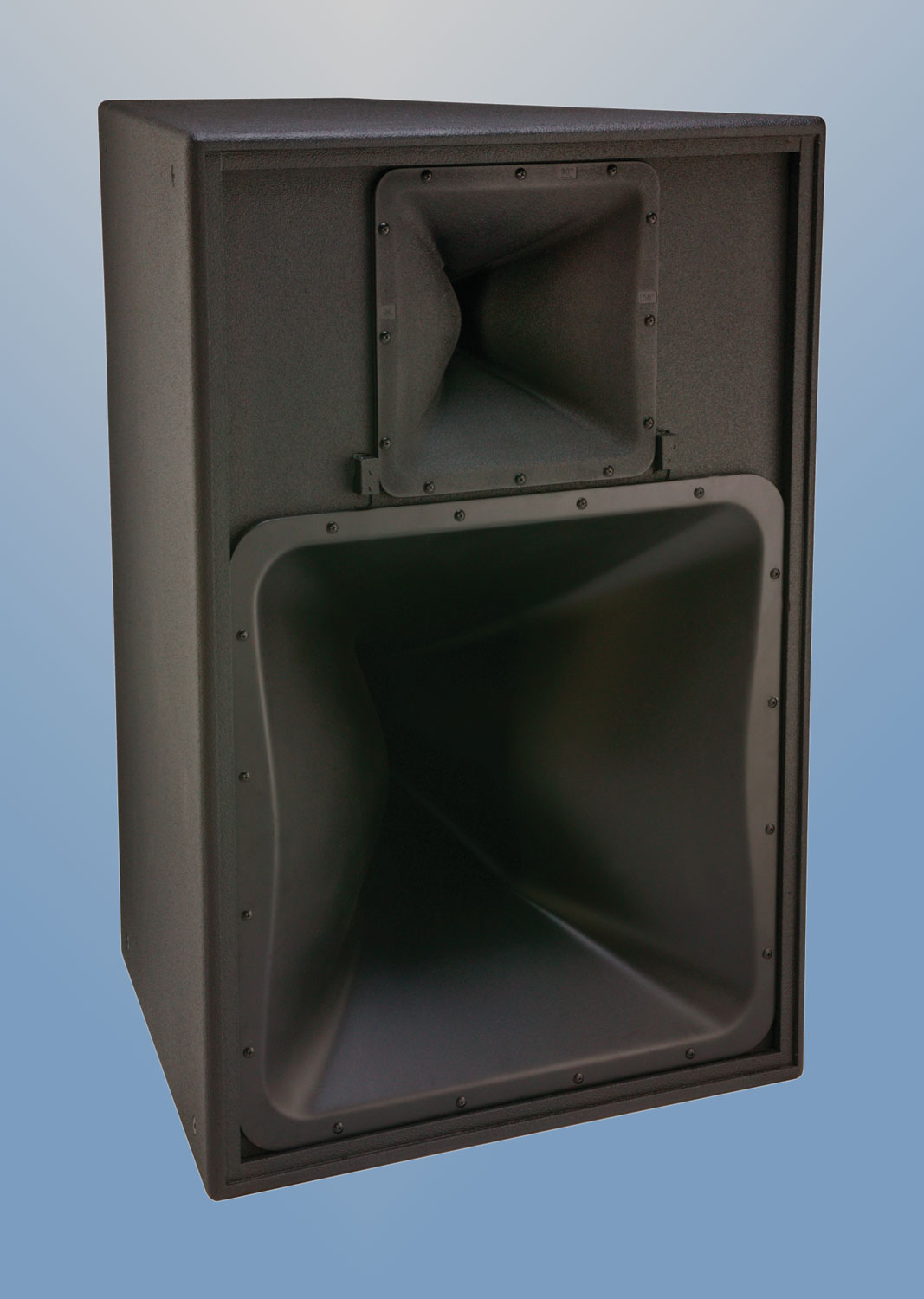

file type icon PD52xx95-Image.jpg
updated: 22. Okt
    123 KB 22. Okt

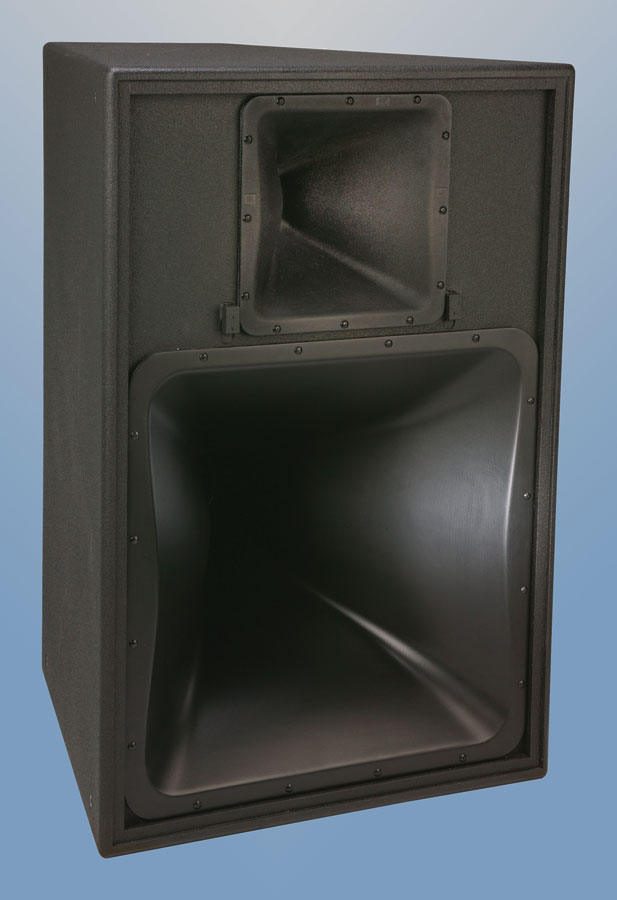

file type icon PD52xx64.jpg
updated: 22. Okt
    47,7 KB 22. Okt

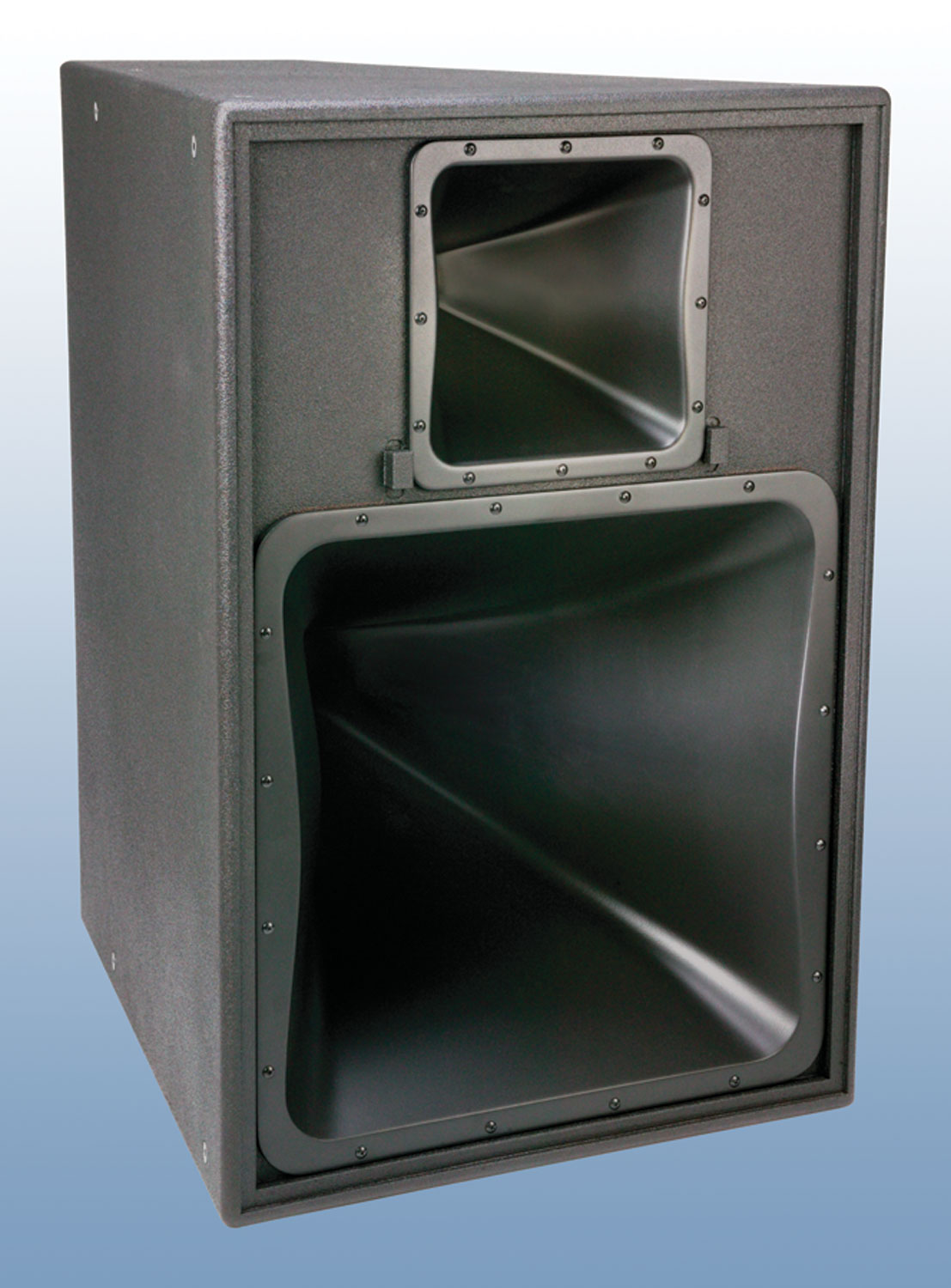

file type icon PD5200-43
updated: 23. Okt
    178 KB 23. Okt
Information documents
file type icon PD5200/64WRC
updated: 18. Okt
    145 KB 18. Okt
Speaker Tunings
file type icon PD5000 Tunings
updated: 18. Okt
    2,35 MB 18. Okt
CLF Files
file type icon JBL Pro ALL CLF Files
version 12-10-21, updated: 13. Dez
12-10-21    24 MB 13. Dez

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Frequency Range (-10dB) 200 Hz to 18 kHz (-10 dB)
Frequency Response (±3 dB) 240 Hz to 16 kHz( ± 3 dB)
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/95: 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB / oct) Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs
System Power Rating Passive Mode: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 111 dB SPL
Mid Frequency Driver CMCD–82H cone mid-range compression driver with integral 200 mm (8 in) diameter Neodymium Differential Drive NDD™ dual voice coil driver
HF Driver 2431H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil
Nominal Impedance 8 ohms
Enclosure Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood.
Suspension Attachment 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam backing (grille cloth backing on white units)
Input Connectors Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Net Weight 69 kg (152 lb)
Optional Accessories 229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
