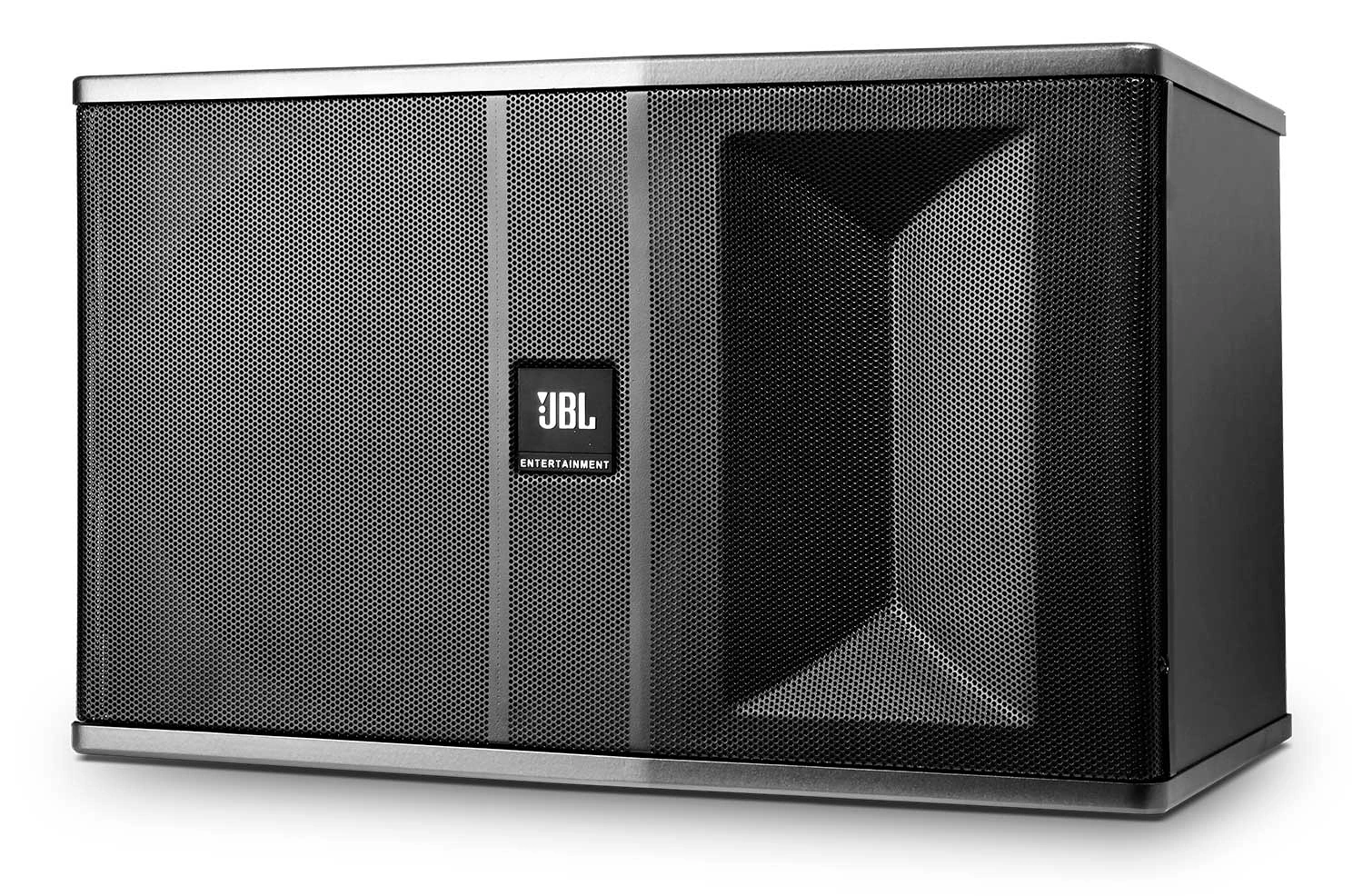

12 Inch Full Range Loudspeaker System
The Ki82 is a 2-way full range speaker designed for the karaoke market. The Ki82 utilizes a single 12” woofer and dual 3” cone tweeters.
Größere Bilder
Eigenschaften
- Specially designed 12” woofer with high power handling and low distortion and power compression
- Dual 3” cone tweeters provide excellent high frequency response
- Unique acoustic lens optimizes high frequency directivity
- Precision crossover with protection circuitry built in
- Durable MDF enclosure
Downloads
Spec Sheets
| Größe | |
|
|
363 KB |
|
|
462 KB |
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
Teile & Service
Spezifikationen
| System Type | 12′′, 2-way, bass-reflex |
| Frequency Range (-10dB) | 45 Hz - 17 KHz |
| Frequency Response (±3 dB) | 60 Hz - 14 KHz |
| System Sensitivity (1w @ 1m) | 92 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL *2 | 116 dB (122 dB peak) |
| Power Rating *3(Continuous/Program/Peak) | 250W/500W/1000W |
| Coverage Pattern | 110° x 100° (H x V) |
| Dimensions (H x W x D) | 350 mm x 575 mm x 355 mm (13.8 in x 22.6 in x 14.0 in ) |
| Net Weight | 16.6 kg (36.6 lbs) |
| LF Driver | 1 x 12” Woofer |
| HF Driver | 2 x 3” Tweeter |
| Input Connectors | Binding post |
| Enclosure | Vinyl covered 15 mm MDF |
