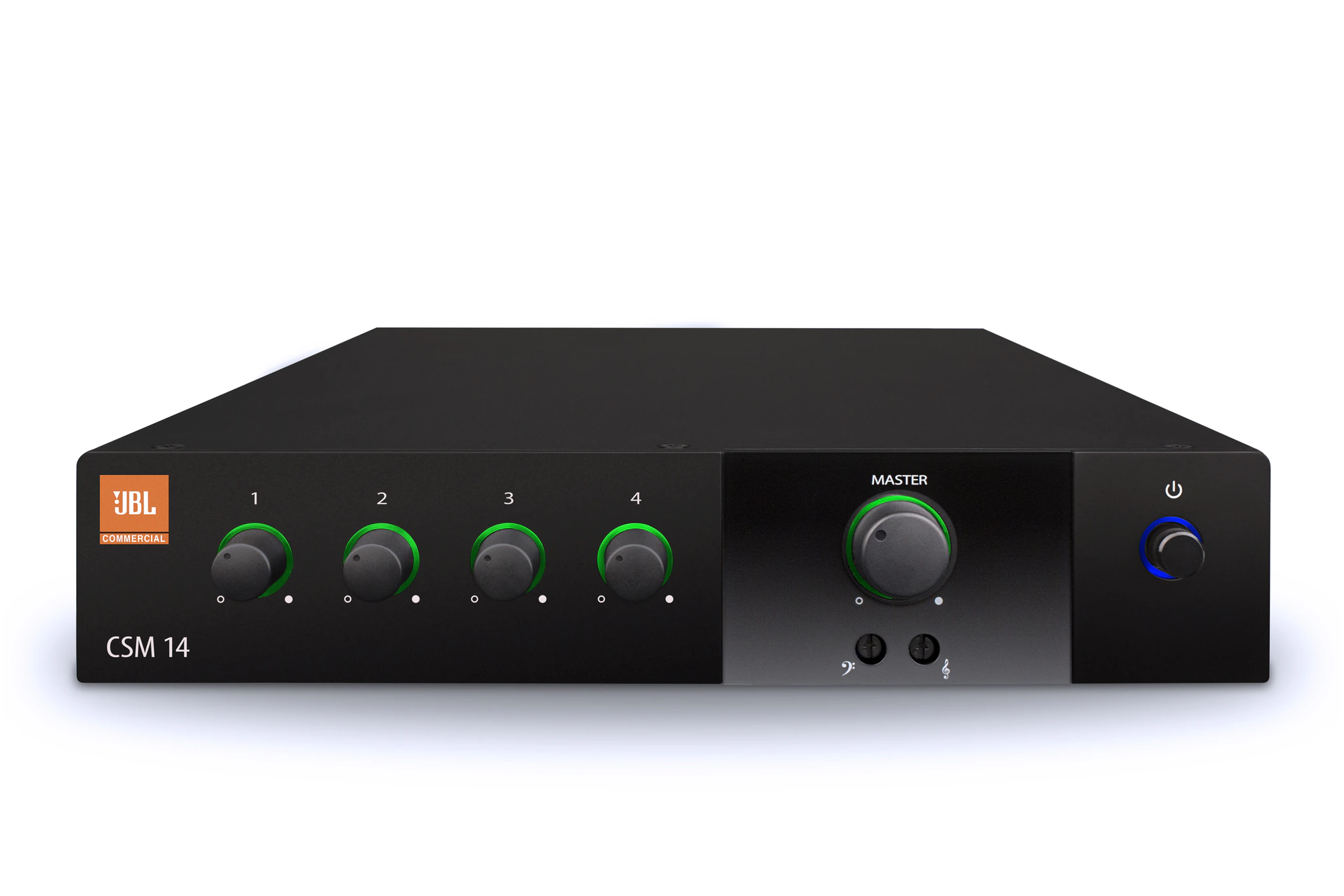

CSM 14

Commercial Mixer

CSM 14
Größere Bilder

Backed by the combined technological prowess of multiple HARMAN brands, the JBL® Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.

Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.

They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they’re built using HARMAN’s GreenEdge™ clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.

Eigenschaften

  • 4 or 8 inputs with 1 or 2 channel outputs
  • Fanless, space-saving 1U design
  • Configurable output routing (2 channel models only)
  • Independent base/treble controls
  • Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
  • Supports JBL CSR-V wall controller via Ethernet cable
  • Priority muting, VOX ducking, and phantom power for all models

Downloads

Dokumente
  Sprache Größe Hochgeladen
file type icon CSM 14 Bedienungsanleitung-Englisch
en aktualisiert: Apr 2026
en  1,45 MB Apr 2026
file type icon CSM 14 Bedienungsanleitung-Chinesisch
zh aktualisiert: Apr 2026
zh  1,89 MB Apr 2026
Brochures
  Größe Hochgeladen
file type icon JBL Commercial Series Gatefold
aktualisiert: Apr 2020
1,31 MB Apr 2020
file type icon JBL Commercial Brochure
aktualisiert: Apr 2020
1,64 MB Apr 2020
Application Guides
  Größe Hochgeladen
648 KB Apr 2020

Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.

Teile & Service

Spezifikationen

Inputs 4
Output Channels 1
Input Sensitivity (Mic) 3mVrms
Input Sensitivity (Line) 775mVrms
Input Sensitivity (RCA) 300mVrms
Phantom Power 27VDC
Priority Muting Yes
Configurable Output Routing No
AC Line Voltage 100 - 240V, 50/60 Hz
Dimensions 1.7" x 8.6" x 11.9" (43.3mm x 218.5 mm x 303.4mm)
