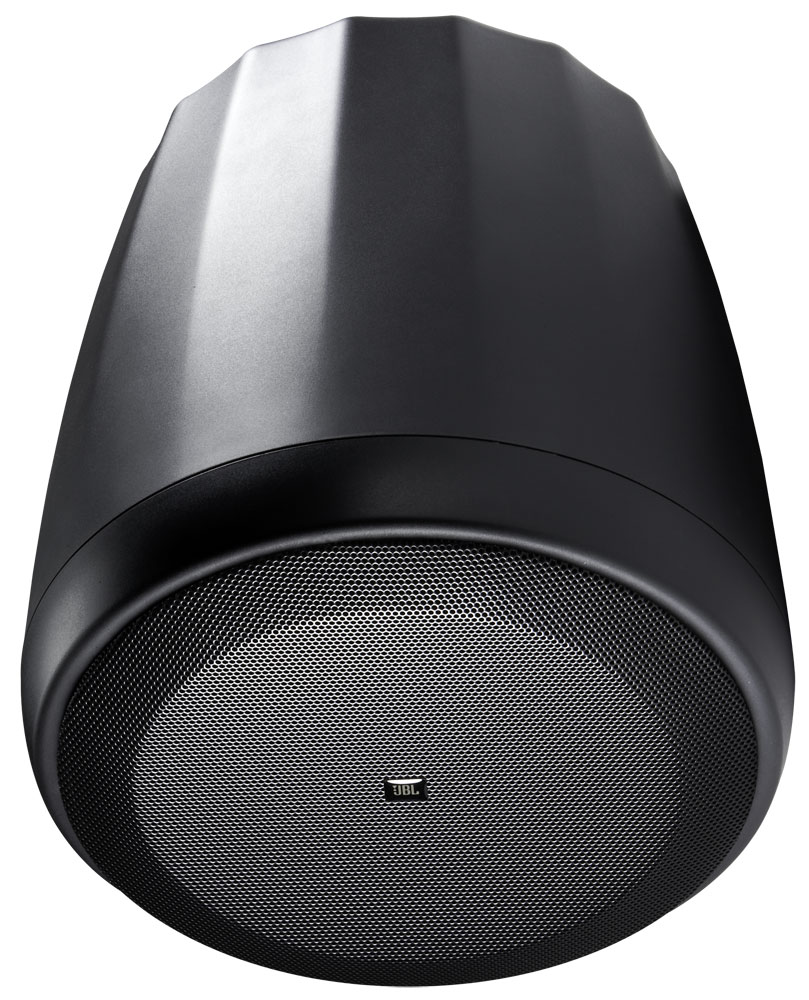

Control 67 P/T

Extended Range Full-Range Pendant Speaker

Control 67 P/T
Larger Images

Extended Range Full-Range Pendant Speaker

Control 67P/T incorporates a large enclosure and high-power 6.5” (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue.

Features

  • RBI Radiation Boundary Integrator Technology
  • 120° conical coverage
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white

Downloads

  Version Language Size Uploaded
Specifications
file type icon Control 67PT Spec Sheet
updated: Apr 2019
    1,03 MB Apr 2019
Brochures
file type icon Control Contractor Brochure (2024)
en version E, updated: Mär 2024
en  14,2 MB Mär 2024
file type icon C60 Introductory Sheet
updated: Okt 2019
    267 KB Okt 2019
CAD Drawings
file type icon C60 DXF Drawings
updated: Nov 2022
    4,14 MB Nov 2022
Compliances
file type icon Control 60 Series Declaration of Conformity
updated: Okt 2019
    987 KB Okt 2019
Software
platform icon Distributed System Design (DSD)
version 3.7, updated: Nov 2023
3.7     1,07 MB Nov 2023
Install Guides
file type icon Painting C60 Speakers
updated: Apr 2021
    146 KB Apr 2021
file type icon C60 Install Instructions
updated: Apr 2019
    886 KB Apr 2019
Images
file type icon C60 Hi-Res Family Image
updated: Okt 2019
    77,2 KB Okt 2019
file type icon Control 67PT Hi Res Images
updated: Apr 2019
    170 KB Apr 2019
Speaker Tunings
file type icon Commercial, CBT, and AWC Tunings 220616
version A, updated: Mai 2023
  557 KB Mai 2023
Accessories
file type icon C60 Panel Cover Instructions
updated: Mai 2021
    710 KB Mai 2021
Ease Data
file type icon C60 Ease Files
version B, updated: Jan 2023
  962 KB Jan 2023
CLF Files
file type icon Control 60 Series CLF Files
updated: Jan 2023
    377 KB Jan 2023
FAQs
file type icon C60 Frequently Asked Questions
updated: Sep 2022
    337 KB Sep 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

Specifications

Frequency Range (-10dB) 58 Hz – 18 kHz
Frequency Range (±3 dB) 78 Hz – 16 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 90 dB
Coverage Angle 120° conical
Directivity Factor (Q) 5.7
Directivity Index (DI) 7.5 dB
Maximum SPL (1m) 109 dB continuous pink noise, 115 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.
Net Weight (each) 5.2 kg (11.5 lbs)
Shipping Weight (pair) 12.3 kg (27 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
