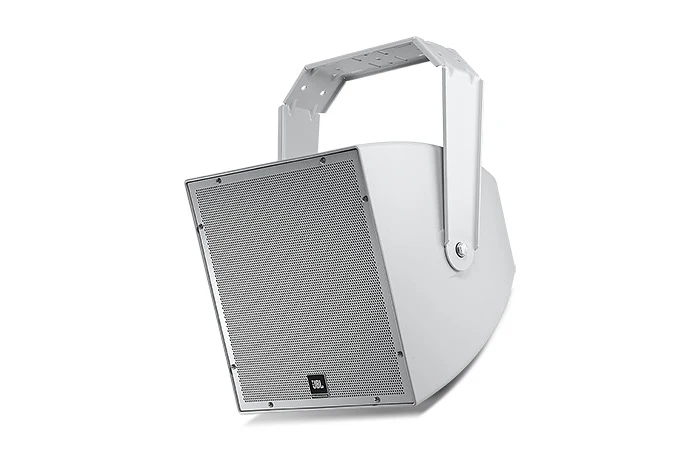

Der AWC159 ist ein kompaktes, koaxiales, 2-Wege-Vollbereichs-Lautsprechersystem mit hoher Witterungsbeständigkeit, das sich ideal für Sprache und Musik in einer Vielzahl von Anwendungen eignet, darunter Sportanlagen, Rennstrecken, Stadien, Jahrmärkte, Rodeos, Eislaufhallen, Themenpark-Veranstaltungsorte, Wasserparks, Außenmusik-/Pagingsysteme, Schwimmbäder und viele andere Indoor- oder Outdoor-Veranstaltungsorte.
| Größe | |
|
|
677 KB |
| Größe | |
|
|
5,71 MB |
| Größe | |
|
|
90 KB |
|
|
10,8 MB |
| Größe | |
|
|
148 KB |
| Größe | |
|
|
21 MB |
| Größe | |
|
|
867 KB |
| Größe | |
|
|
1,45 MB |
| Größe | |
|
|
40,1 KB |
| Größe | |
|
|
557 KB |
| Größe | |
|
|
1,36 MB |
Falls einer der obigen Links zu seltsamen Zeichen in Ihrem Browser führt, klicken Sie bitte mit der rechten Maustaste auf die Datei, um sie auf Ihrem Computer zu speichern.
| Frequency Range (-10dB) | 52 Hz – 20 kHz |
| Frequency Response (±3 dB) | 80 Hz – 20 kHz |
| Coverage Pattern | 90° x 90° |
| Directivity Factor (Q) | 11.1 (1 kHz – 16 kHz) |
| Directivity Index (DI) | 9.7 dB (1 kHz – 16 kHz) |
| System Power Rating | 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs |
| Sensitivity (2.83V @ 1m) | 98 dB (Ave. 80 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8Ω: 125 dB (peaks of 131 dB) 300 W Tap: 123 dB (peaks of 129 dB) |
| Crossover Network | 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W |
| LF Driver | Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil. |
| HF Driver | 2408H-2 38 mm (1.5 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled. |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Attachment | Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Grille | Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. |
| Input Connection | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36") |
| Environmental | IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs). |
| Dimensions | 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back |
| Colors | Available in gray (similar to Pantone 420C) and black (-BK) |
| Included Accessories | U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel. |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Suspension Attachment | Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. |
| Net Weight (each) | 20.6 kgs. (45.5 lbs.) |
