SRX835P

15-tommers 3-vejs punkt-kilde powered-højttaler

Køb nu
SRX835P
Større billeder

15-tommers 3-vejs punkt-kildehøjtaler med indbygget forstærker

SRX800-serien er næste generations højtydende aktivt højttalersystem bestående af tre fuldfrekvensspejlere og to subwoofer-modeller med en række funktioner, der placerer SRX800-serien i klasse blandt alle konkurrerende systemer. Fuldfrekvensspejleren med 15" trevejs, SRX835P, indeholder legendariske JBL-drivere, proprietær 2.000 Watt Crown-forstærkning, Crown Front-End DriveCore-teknologi, premium JBL-brugeropsættelseligt DSP, V5-indstillinger kompatible med Vertec og VTX-turnésystemer, og HiQnet Network-kontrolmuligheder via iOS og Android-applikationer. Med udgangspunkt i JBLs lange historie med banebrydende teknologi og højttalerdesign møder SRX800-serien behovene hos turnéhussteder, installationer og de mest krævende live sound-applikationer, hvilket sikrer, at de kan implementere en kompromisløs, alt-i-én-løsning med legendarisk JBL-lyd og -performance, en bred vifte af konfigurationsmuligheder og kompatibilitet med JBLs flagskib-turnésystemer.



Funktioner

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup

Unprecedented Control

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

Applications

  • Live performance systems.
  • Mobile and fixed DJ systems.
  • Sound system rental and tour.
  • Permanent installations.


Flere detaljer

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL’s patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL’s 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With a remarkable 103dB signal-to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion Control™ iOS app, and standalone applications for iOS and Android.

Downloads

Data Sheets
  Størrelse Uploadet
file type icon SRX835P Data Sheet
opdateret: apr 2019
1,86 MB apr 2019
Specifications
  Størrelse Uploadet
file type icon SRX835P Spec Sheet
opdateret: apr 2019
708 kB apr 2019
Manuals
  Størrelse Uploadet
file type icon SRX Connect Presets HelpGuide
opdateret: okt 2020
286 kB okt 2020
file type icon SRX Connect NormalView HelpGuide
opdateret: okt 2020
427 kB okt 2020
Brochures
  Version Sprog Størrelse Uploadet
file type icon JBL 2025 PPA Brochure
en version B, opdateret: aug 2025
B  en  8,45 MB aug 2025
Compliances
  Størrelse Uploadet
file type icon SRX800 Series Declaration of Conformity
opdateret: okt 2020
154 kB okt 2020
Software
  Størrelse Uploadet
file type icon Software Support
opdateret: apr 2019
114 kB apr 2019
Android download icon SRX Connect
udgivet: aug 2023
aug 2023
Windows download icon HiQnet Audio Architect
udgivet: nov 2020
nov 2020
iOS download icon SRX Connect
udgivet: aug 2023
aug 2023
User Guides
  Størrelse Uploadet
file type icon SRX 812P/815P/835P QuickStart Guide
opdateret: nov 2020
1,75 MB nov 2020
file type icon SRX800 User Guide
opdateret: apr 2019
7,41 MB apr 2019
Images
  Størrelse Uploadet
file type icon SRX800 Driver
opdateret: apr 2019
158 kB apr 2019
file type icon SRX800 Handle
opdateret: apr 2019
208 kB apr 2019

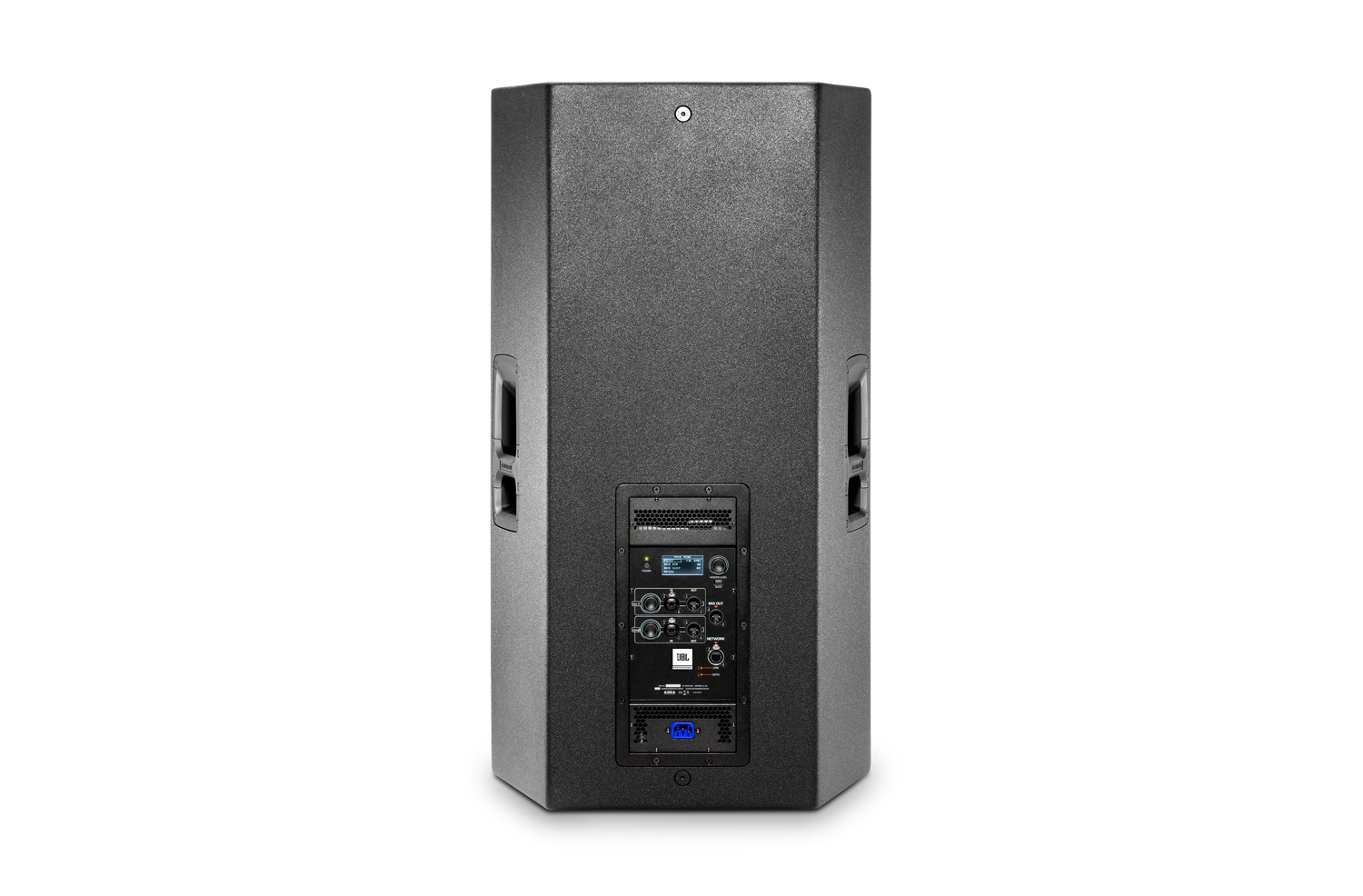

file type icon SRX835P Back
opdateret: apr 2019
182 kB apr 2019

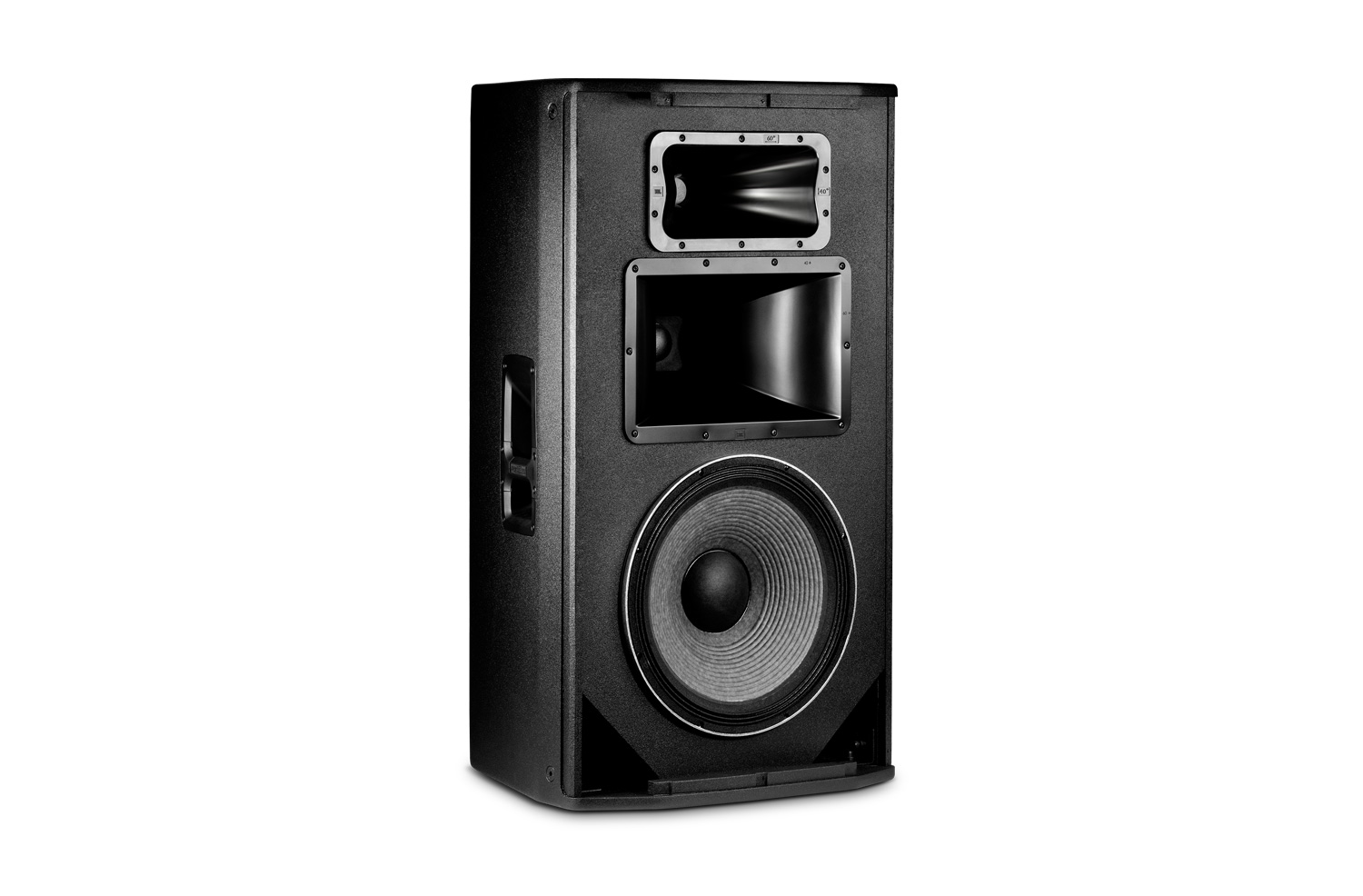

file type icon SRX835P Angle No-Grill
opdateret: apr 2019
164 kB apr 2019

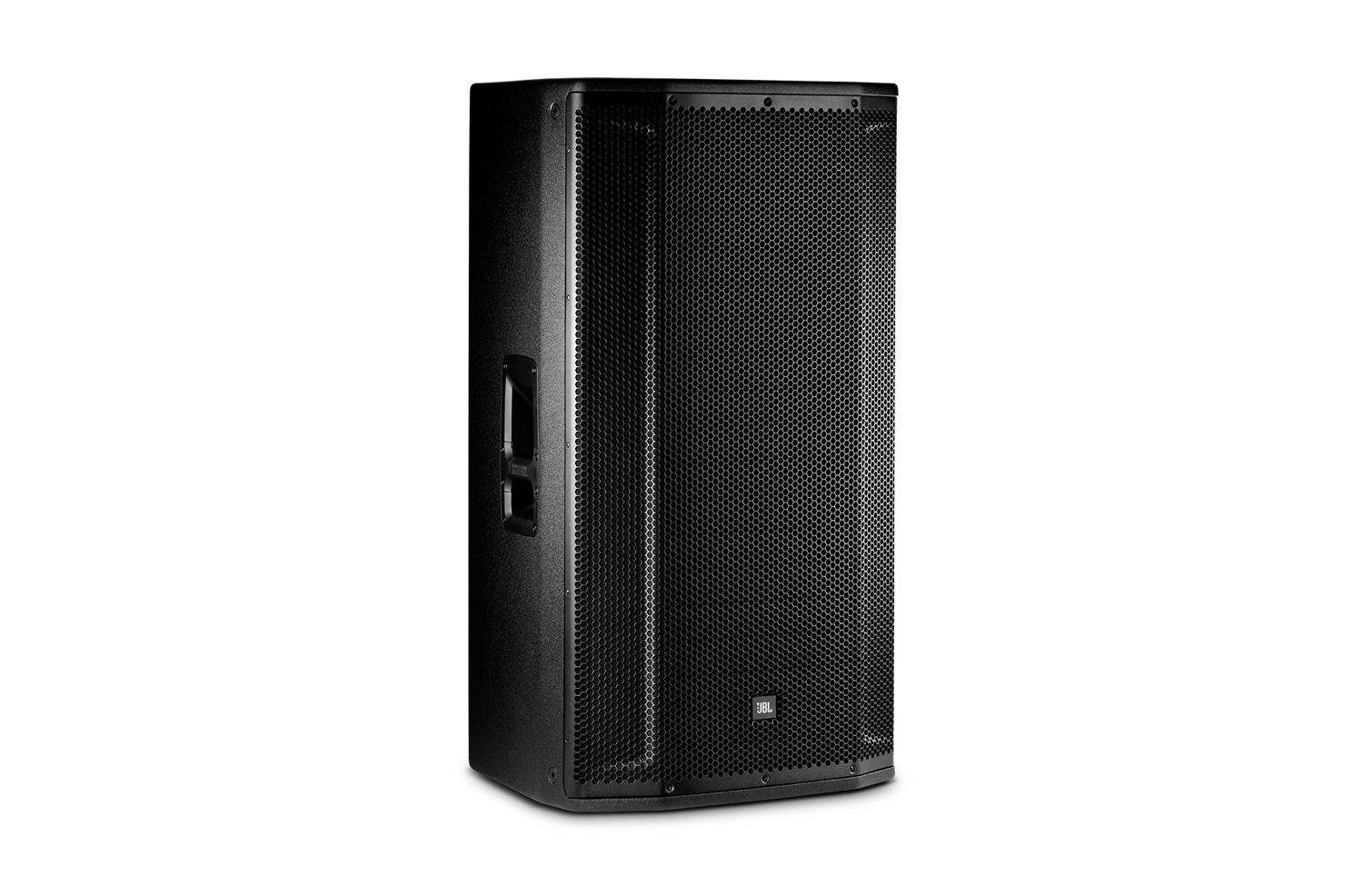

file type icon SRX835P Angle
opdateret: apr 2019
234 kB apr 2019

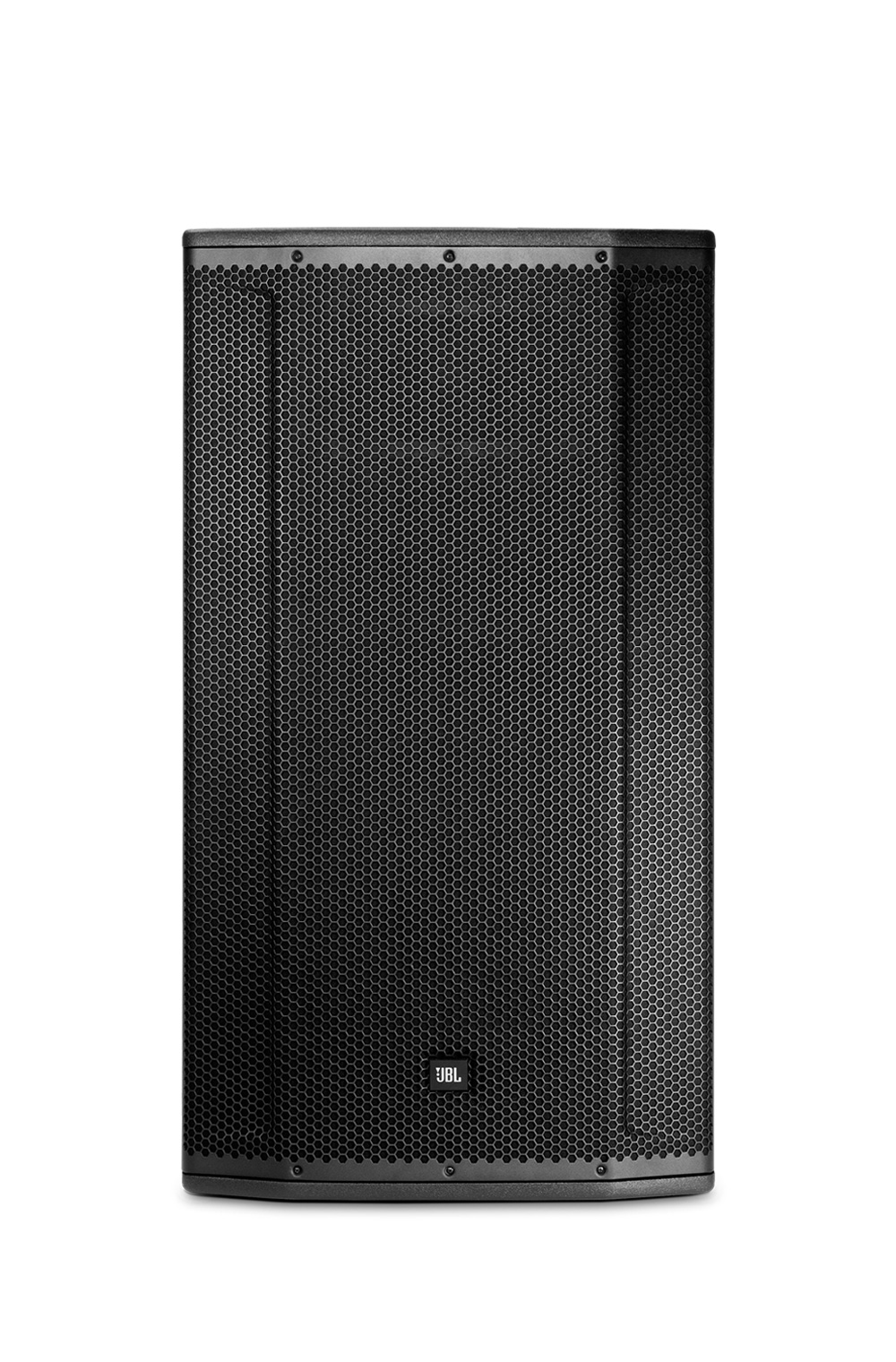

file type icon SRX835P Front
opdateret: apr 2019
401 kB apr 2019

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

System Type Self powered 15”, three-way, bass-reflex
Maximum SPL (1m) 137 dB
Frequency Range (-10dB) 33 Hz - 21 kHz
Frequency Response (±3 dB) 41 Hz - 20 kHz
Coverage Pattern 60° x 40°
Amplifier Design Class D
Power Rating 2000 W Peak
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Net Weight (each) 38.6 kg (85 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR
Enclosure 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
Nominal Impedance NA - amplification is integrated
LF Driver 1 x 2275F, Differential Drive®, 15" diameter
MF Driver 1 x 2107H
HF Driver 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
Suspension / Mounting Single 36 mm pole socket, 12 x M10 suspension points

Tilbehør

SRX835P-CVR-DLX | Deluxe padded cover for SRX835P
SRX835P-CVR-DLX Main photo
Større billeder
SRX835P-CVR-DLX detail thumbnail #1

Deluxe padded cover for SRX835P, water resistant black nylon exterior, 2.5mm polyethylene grille protector, covered handle access with Velcro closure, with embroidered JBL logo
