PRX815
Udgået

15" To-Vejs Fuldt Frekvensspektrum Hovedsystem/Gulvmonitor med Wi-Fi

PRX815
Større billeder

15" To-vejs fuldfrekvent hovedsystem/gulvmonitor med Wi-Fi

JBL PRX815 er et fuldfrekvent højttalersystem designet til hovedsystem- og gulvmonitorapplikationer. Med et 15" to-vejs basrefleksdesign drevet af en 1500-watts klasse-D forstærker leverer PRX815 utrolig lydstyrke i en let og kompakt form.



Funktioner

  • Built-in Wi-Fi for wireless control of your system from anywhere in the venue
  • Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
  • Class-leading 1500-watt amplifier delivers ample power to fill your venue
  • JBL Differential Drive® transducers for higher SPL in a lightweight design
  • Next-generation JBL neodymium compression drivers
  • Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
  • Intelligent variable-speed fan activates only when needed to reduce noise
  • Updated tuning delivers flat frequency response and smooth off-axis behavior
  • Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
  • Universal power supply for worldwide compatibility
  • dbx Type IV™ limiting ensures clear, accurate sound at high volumes
  • Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

  • The 2-way 15” offers the perfect balance between size and performance. The PRX815 truly is an exception; it’s small, light weight, versatile and powerful with remote Wi-Fi control of onboard DSP EQ parameters. The performance and asymmetrical design make this a perfect choice for musicians, entertainers and DJ’s when portability is key, or when hung by the suspension points, an exceptional light-duty installation speaker. All PRX800 Series speakers were designed to excel in sound reinforcement where challenging audio environments and loud volumes are the norm. For applications requiring full bandwidth sound reproduction, the PRX815 delivers the optimum balance. For live music, recorded music playback and speech the user has the option of tailoring the EQ. A microphone can be directly connected to the speaker input for quick PA applications. Coupled with a PRX800 sub-woofer the system becomes an efficient, full-range sound system.
  • The PRX815 is comprised of 15” 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.


Downloads

Data Sheets
  Version Størrelse Uploadet
file type icon PRX815 Sell Sheet
opdateret: okt 2020
  777 kB okt 2020
file type icon PRX815 Spec Sheet
version 12_16_19, opdateret: dec 2019
12_16_19  1,05 MB dec 2019
Manuals
  Størrelse Uploadet
file type icon PRX800 Quick Start Guide
opdateret: okt 2020
1,3 MB okt 2020
Compliances
  Størrelse Uploadet
file type icon PRX800 Compliance
opdateret: okt 2020
143 kB okt 2020
Software
  Størrelse Uploadet
iOS download icon PRX Connect - iOS
udgivet: dec 2023
dec 2023
Android download icon PRX Connect - Android
udgivet: nov 2020
nov 2020
User Guides
  Størrelse Uploadet
file type icon PRX800 User Guide
opdateret: okt 2020
1,79 MB okt 2020
Information documents
  Størrelse Uploadet
file type icon PRX800 V2 Firmware FAQ
opdateret: okt 2020
77,1 kB okt 2020
HI-RES IMAGEs
  Størrelse Uploadet

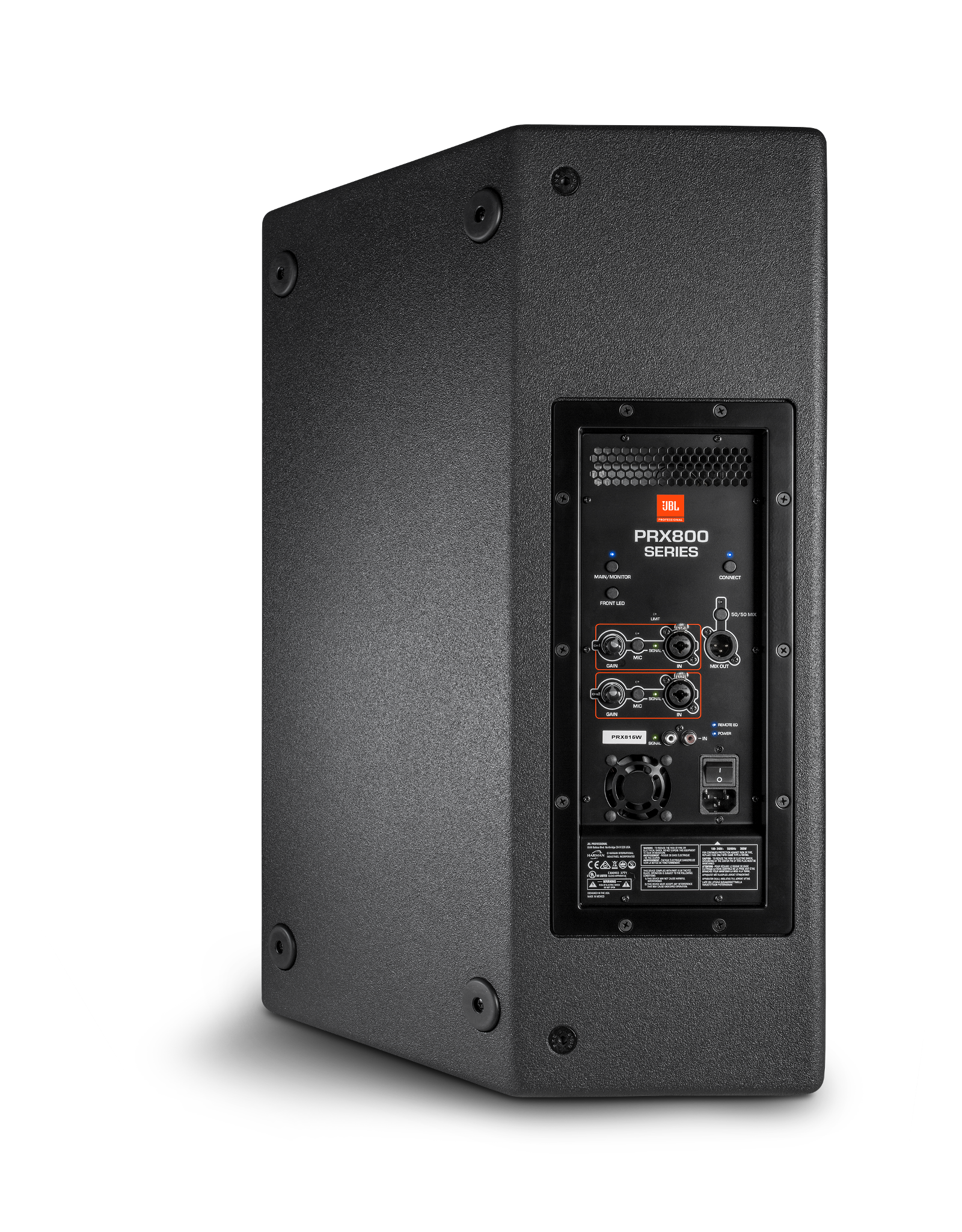

file type icon PRX815 Back
opdateret: okt 2020
3,79 MB okt 2020

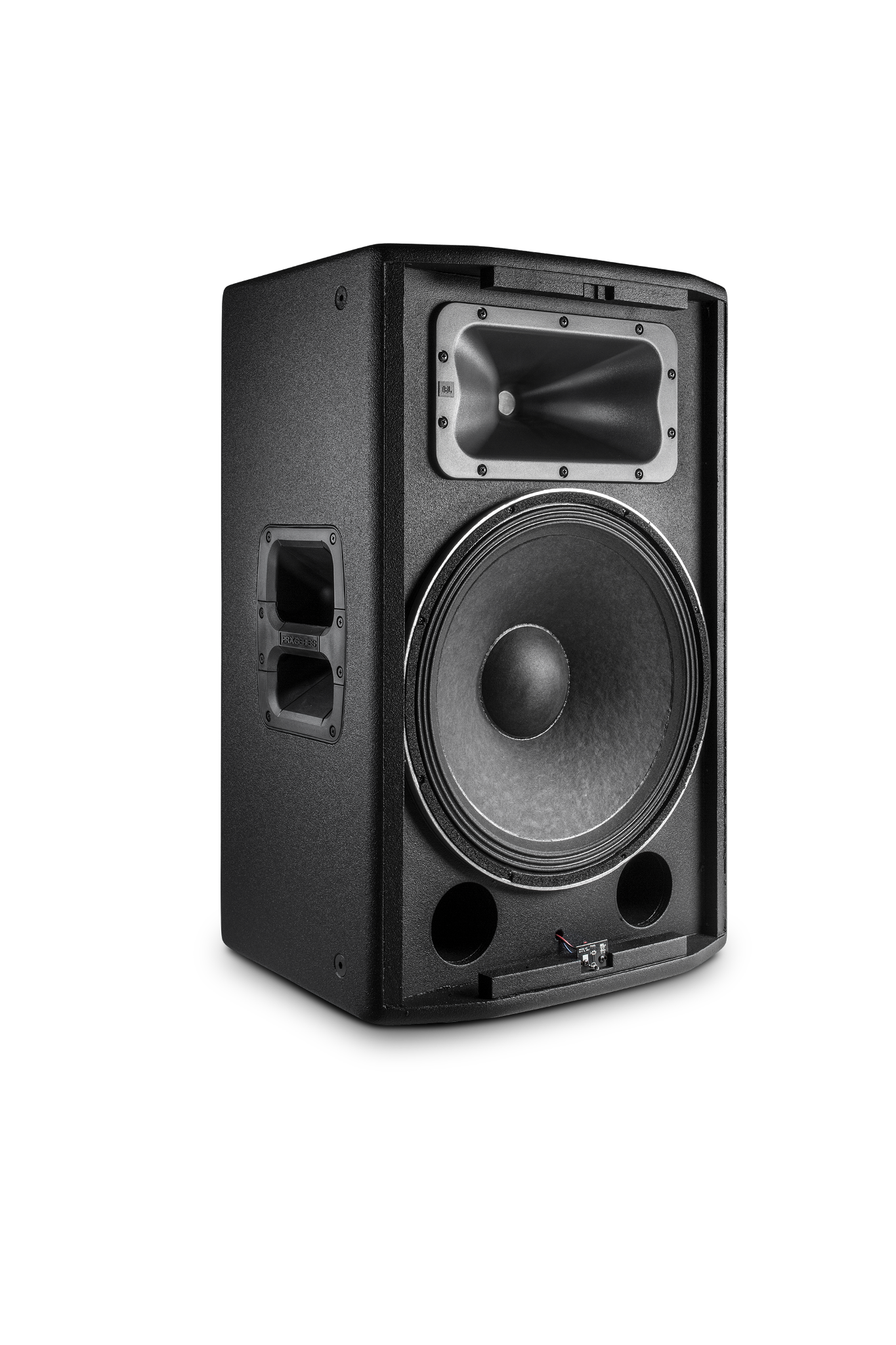

file type icon PRX815 Front Angle No Grille
opdateret: okt 2020
1,86 MB okt 2020

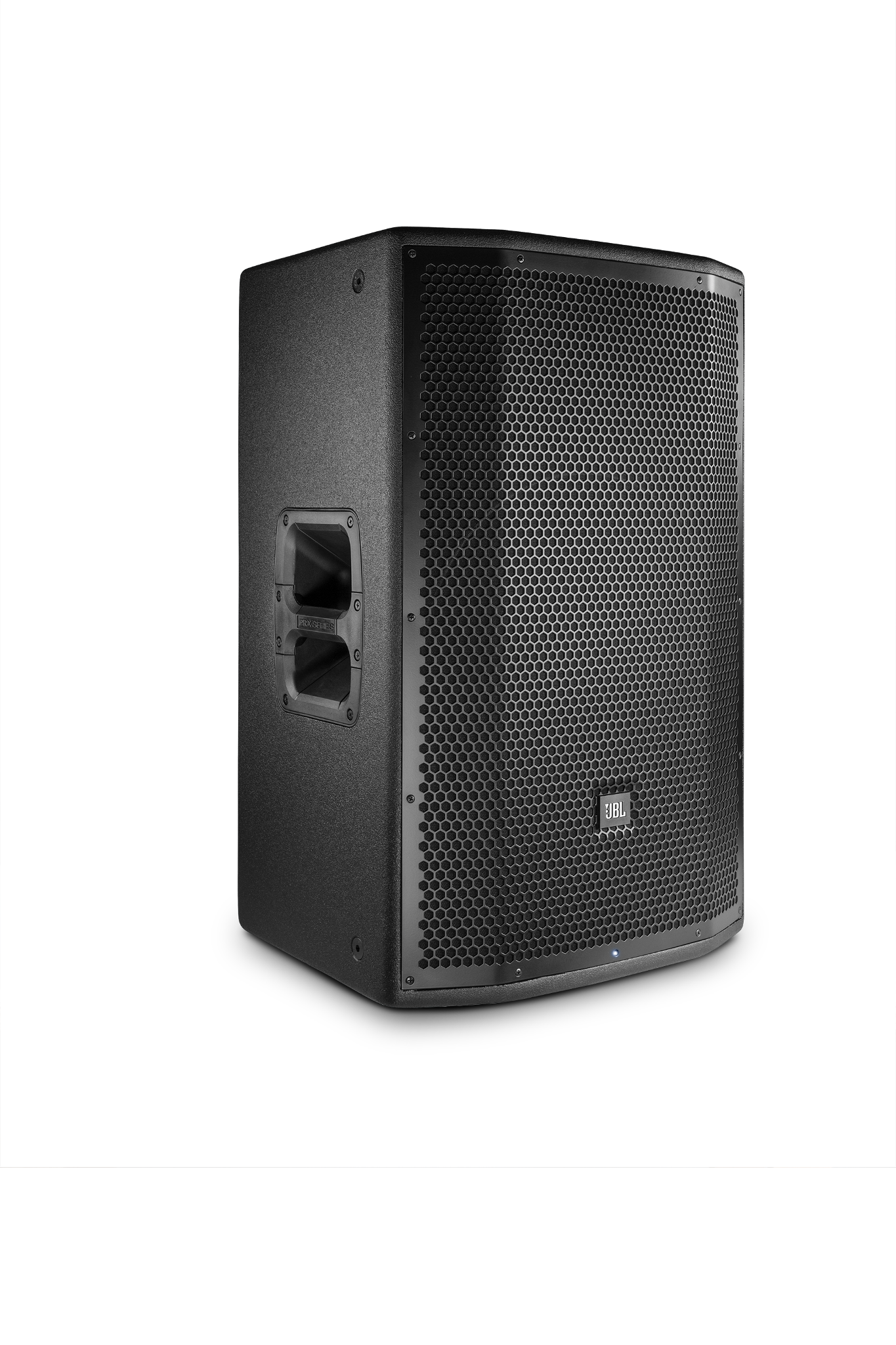

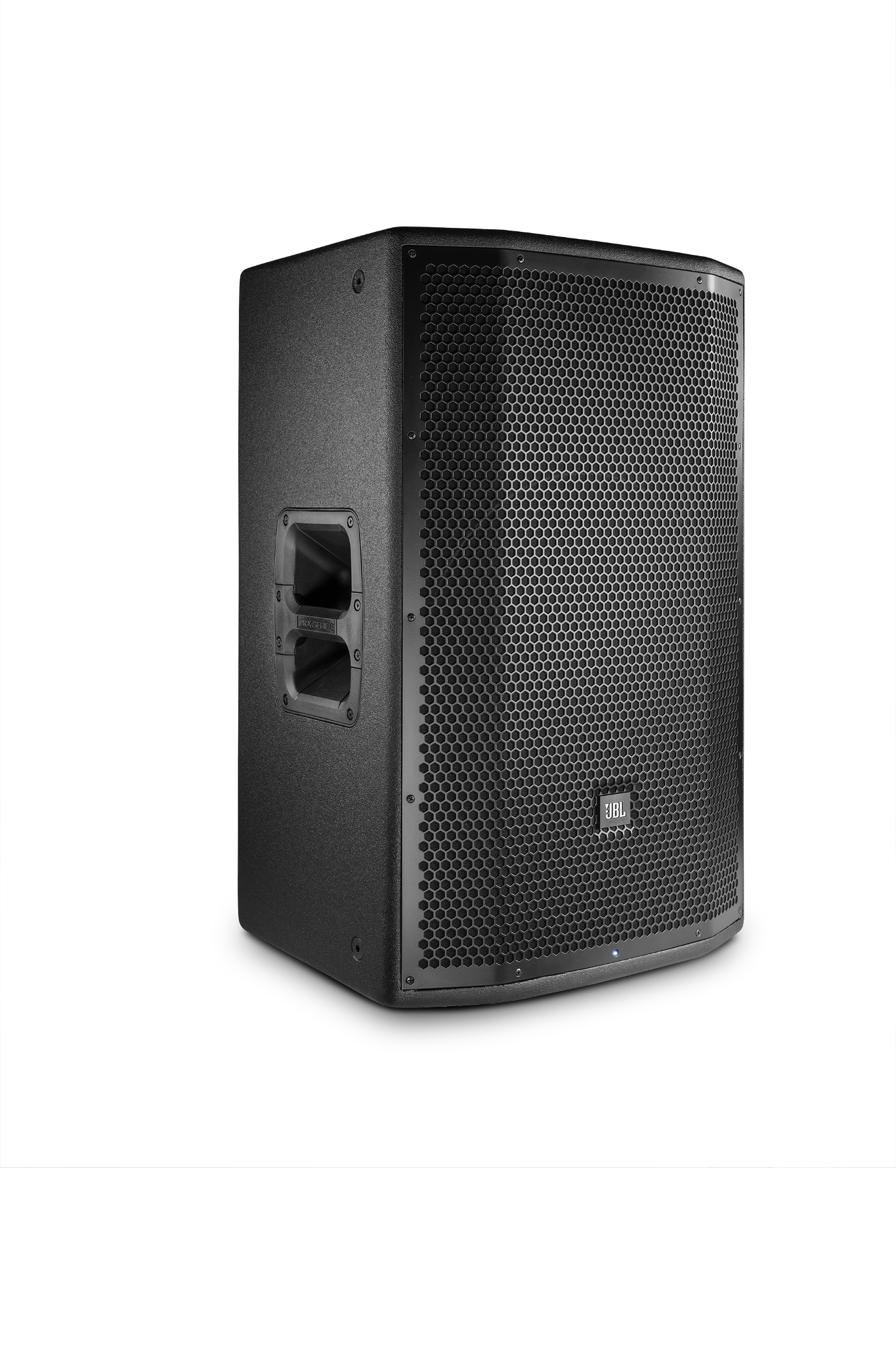

file type icon PRX815 Front Angle
opdateret: okt 2020
1,71 MB okt 2020
Install Guides
  Størrelse Uploadet
file type icon PRX800 WiFi Setup Guide
opdateret: okt 2020
445 kB okt 2020

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

System Type Self Powered 15”, two-way, bass-reflex
Maximum SPL (1m) Normal: 137 dB Boost: 137 dB
Frequency Range (-10dB) Main: 42.9 Hz - 19.5 kHz Monitor: 43.6 Hz - 19.3 kHz
Frequency Response (±3 dB) Main: 58.1 Hz - 17.2 kHz Monitor: 60.7 Hz - 16.7 kHz
Inputs 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input) dbx Type IV™ limiter circuit
Crossover Frequency 2 kHz
Design Highly efficient Class-D amplifier
Power Rating 1500W (750W x 2)
AC power input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 275G (15 in) woofer
HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 90° x 50° nominal
Directivity Index (DI) 10.2 dB
Directivity Factor (Q) 10.4
Enclosure Asymmetrical, 18 mm, Duraflex coated plywood
Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport 1 x injection molded handle with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 701mm x 446mm x 359mm (27.6in x 17.5in x 14.1in)
Net Weight 20.86 kg (46.0 lb)
Gross Weight 26.3 kg (58.0 lb)
Mic Inputs 2
Phantom Power No
Effects 25 parametric EQ's and speaker delay
Outputs 1 x XLR (mix out)
