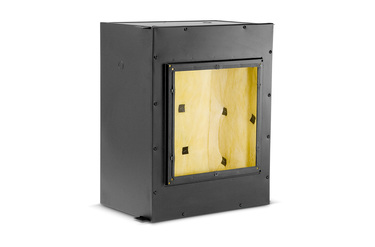

MTC-300BB12

3 kubikfods bagkasse til Control 300 Series 12 tommer drivere

MTC-300BB12
Større billeder

3 Cubic Ft. Backbox til Control 300 Series 12 in.Drivere

Professional Series

Funktioner

  • Ekstra tykt metalkonstruktion i 16 gauge.
  • Foret med 12 mm (½ tomme) tyk MDF for at eliminere resonanser og give ekstra basrespons.
  • Udskæringer på top og alle fire sider.
  • Dobbelt monteringssystem til baffle.
  • Monteringsplatform til en valgfri højeffekt 70V/100V transformer.

Downloads

Specifications
  Størrelse Uploadet
file type icon MTC-300BB12 Spec Sheet
opdateret: apr 2019
2,54 MB apr 2019
Manuals
  Størrelse Uploadet
116 kB okt 2020
CAD Drawings
  Størrelse Uploadet
1,1 MB okt 2019
file type icon Control 300 Ceiling Speakers
opdateret: okt 2019
1,39 MB okt 2019
Compliances
  Størrelse Uploadet
file type icon JBL Brackets
opdateret: okt 2020
152 kB okt 2020
141 kB okt 2019

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

External Volume 3 cu ft, nominal
Internal Volume 2.4 cu ft.
Knockouts 22.1 mm (0.87 in) diameter openingFive (5) locations: 1 on top panel1 on each side and end
Height 308 mm (12.1 in) above ceiling324 mm (12.6 in) total height
Width 587 mm (23.1 in)
Depth 461 mm (18.2 in) cabinet505 mm (19.9 in) including side tabs
Ceiling Cutout Size 378 x 378 mm (14.9 x 14.9 in)
Shipping Weight 23.1 kg (51 lbs)
