EON615
Udgået

15" To-Vejs Multipurpose Selvforstærket Lydsystem

EON615
Større billeder

15" Two-Way Multipurpose Self-Powered Sound Reinforcement

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed specifically to deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained, portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its onboard DSP EQ parameters via Bluetooth. This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly flexible, easy to use, portable system for today’s working musicians and sound providers.



Funktioner

  • Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
  • JBL Waveguide Technology
  • Bluetooth integration


Anmeldelser

“We can’t speak highly enough of the new EON 615. They sound phenomenal, they’re built like Soviet tanks, and they offer up a wide array of versatile options. Throw in a street price under $500 and we’re sold.” —Performer Magazine

“A significant upgrade to the EON range that not only adds onboard, remote-controllable EQ, but sounds (and looks) great, too.” —Sound on Sound

Downloads

Data Sheets
  Størrelse Uploadet
file type icon EON615 Deluxe Cover
opdateret: okt 2020
88,1 kB okt 2020
file type icon EON615 WR Deluxe Cover
opdateret: okt 2020
101 kB okt 2020
file type icon EON 615 Spec Sheet
opdateret: okt 2019
6,14 MB okt 2019
file type icon EON615 DataSheet
opdateret: jul 2019
1,97 MB jul 2019
Specifications
  Størrelse Uploadet
file type icon EON615 Spec Sheet
opdateret: jul 2019
6,14 MB jul 2019
Brochures
  Størrelse Uploadet
file type icon Portable Sound Full Line 2015 Catalog
opdateret: okt 2020
2,54 MB okt 2020
CAD Drawings
  Størrelse Uploadet
file type icon EON615 2D DWG drawing
opdateret: okt 2019
1,46 MB okt 2019
file type icon EON615 2D DWG Drawing
opdateret: okt 2019
1,46 MB okt 2019
file type icon EON615 CAD Drawing
opdateret: jul 2019
1,46 MB jul 2019
file type icon EON615 PDF Drawing
opdateret: jul 2019
183 kB jul 2019
Compliances
  Størrelse Uploadet
file type icon EON G4 Series - Declaration of Conformity
opdateret: okt 2020
154 kB okt 2020
file type icon EON G4 Series - EU-Declaration of Conformity (DoC)
opdateret: jan 2020
699 kB jan 2020
Software
  Størrelse Uploadet
iOS download icon EON Connect
udgivet: aug 2023
aug 2023
Android download icon EON Connect
udgivet: aug 2023
aug 2023
Simulation Data
  Størrelse Uploadet
file type icon Ease SPK/DLL Files - Full JBL Pro Line
opdateret: maj 2024
21 MB maj 2024
Images
  Størrelse Uploadet
file type icon EON615 Carry Bag with Wheels Angle Hi Res Image
opdateret: okt 2020
263 kB okt 2020
file type icon EON615 Carry Bag with Wheels Back Hi Res Image
opdateret: okt 2020
125 kB okt 2020
file type icon EON615 Carry Bag with Wheels Front Hi Res Image
opdateret: okt 2020
300 kB okt 2020

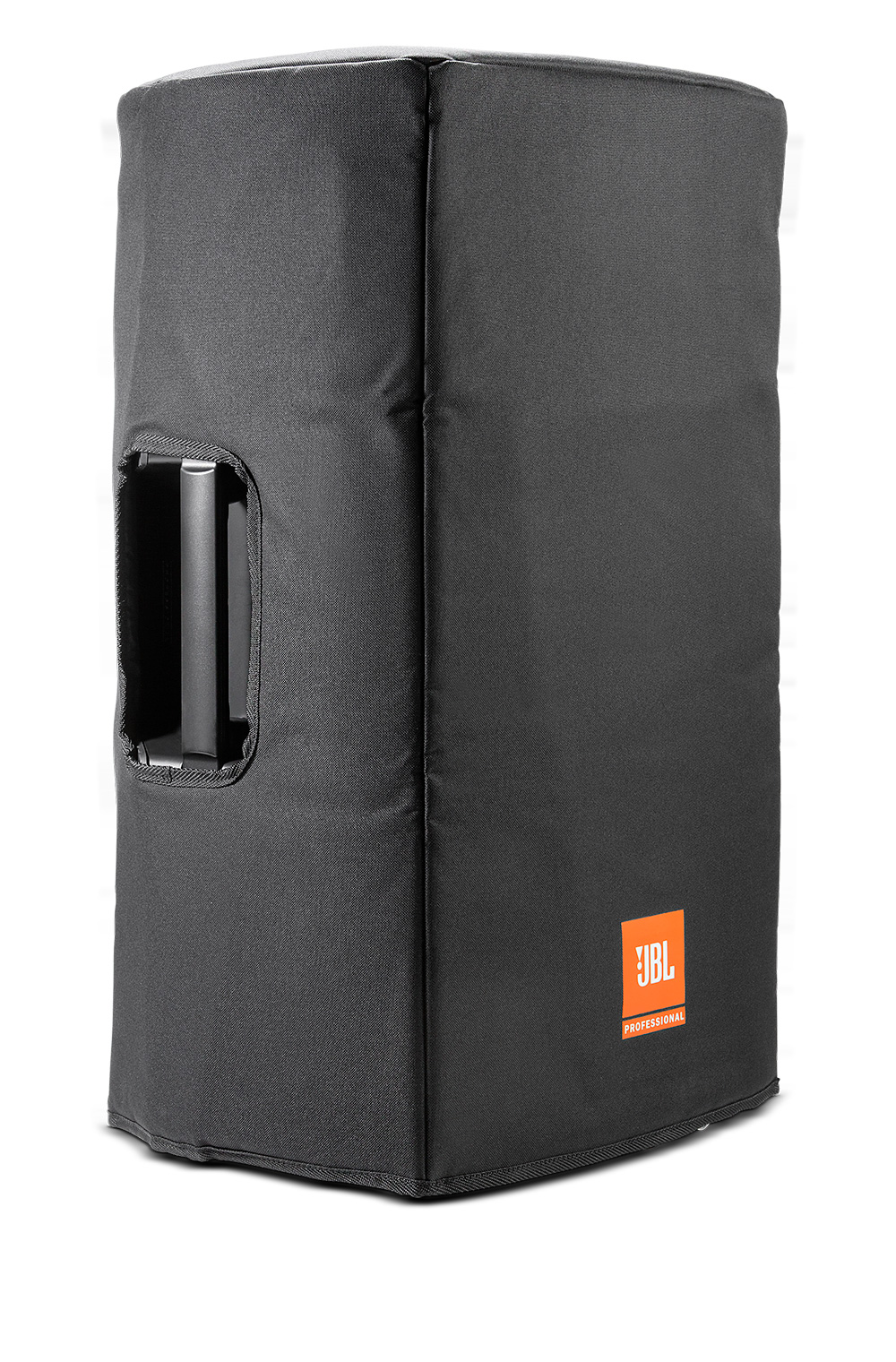

file type icon EON615 Deluxe Cover Front
opdateret: okt 2020
468 kB okt 2020

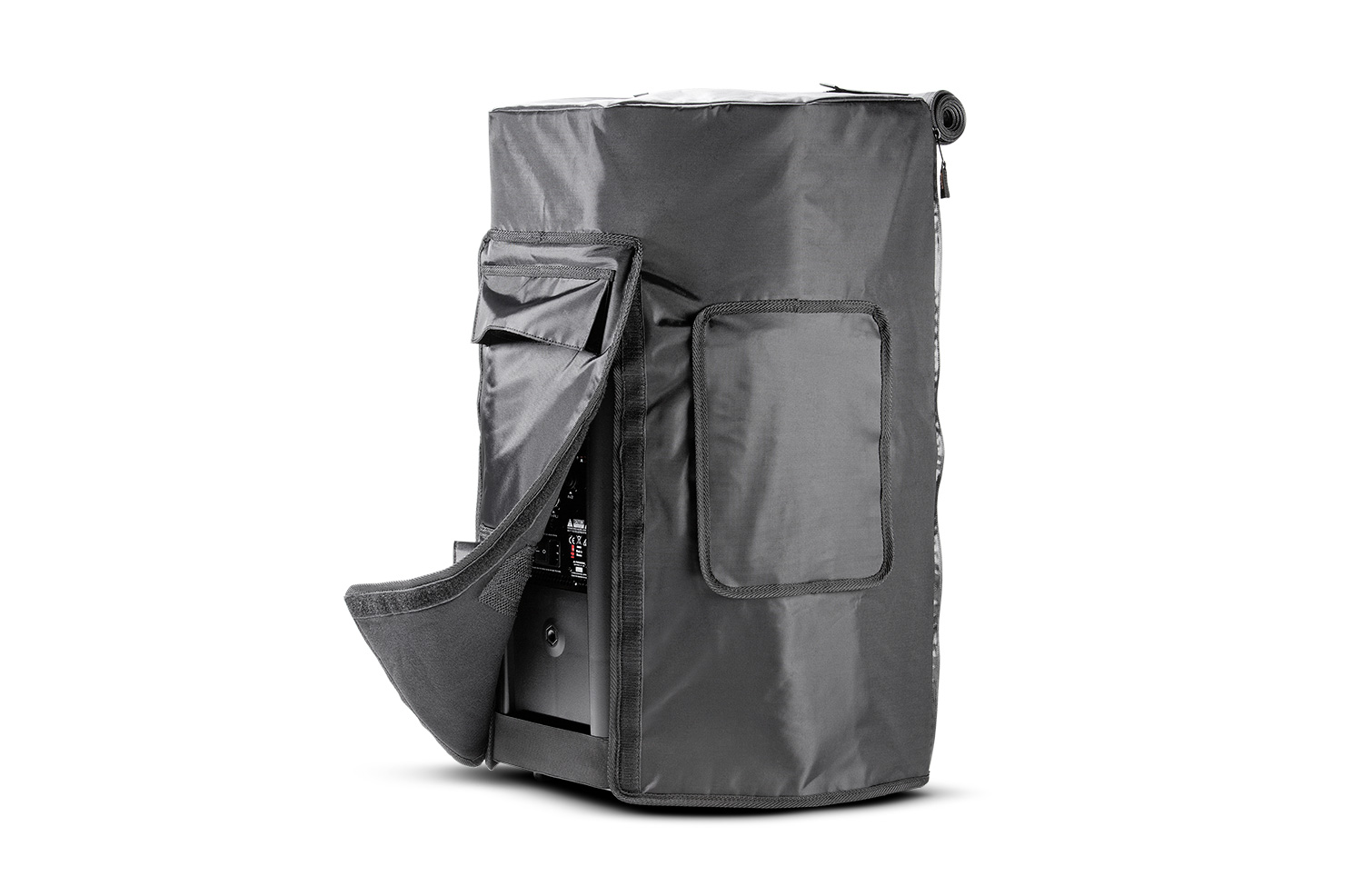

file type icon EON615 WR Deluxe Cover Back
opdateret: okt 2020
182 kB okt 2020
file type icon EON615 WR Deluxe Cover Front
opdateret: okt 2020
136 kB okt 2020
file type icon EON615 WR Deluxe Cover Front Open
opdateret: okt 2020
213 kB okt 2020
file type icon EON615 Carry Bag Front Hi Res Image
opdateret: okt 2020
308 kB okt 2020
file type icon EON615 Carry Bag Back Hi Res Image
opdateret: okt 2020
238 kB okt 2020
file type icon EON615 Carry Bag Angle Hi Res Image
opdateret: okt 2020
254 kB okt 2020
file type icon EON615 Hero Front Back
opdateret: jul 2019
6,18 MB jul 2019
file type icon EON615 Hero noGrill
opdateret: jul 2019
4,41 MB jul 2019
file type icon EON615 Back Panel
opdateret: jul 2019
6,67 MB jul 2019
file type icon EON615 Back Panel Closeup
opdateret: jul 2019
8,67 MB jul 2019
file type icon EON615 Front Beauty
opdateret: jul 2019
4,35 MB jul 2019
file type icon EON615 Handle
opdateret: jul 2019
10,1 MB jul 2019
file type icon EON615 Hero Front Back
opdateret: okt 2020
11,3 MB okt 2020
User Guides
  Version Sprog Størrelse Uploadet
file type icon EON600 Users Guide
version B, opdateret: nov 2020
B    3,85 MB nov 2020
file type icon EON600 Connect User Guide
opdateret: okt 2020
    829 kB okt 2020
file type icon EON600 Connect User Guide - Spanish
es opdateret: okt 2020
  es  3,52 MB okt 2020
file type icon EON600 Connect User Guide - German
de opdateret: okt 2020
  de  3,52 MB okt 2020
file type icon EON600 Connect User Guide - French
fr opdateret: okt 2020
  fr  3,52 MB okt 2020

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

System Type Self powered 15", two-way, bass-reflex
Max SPL Output 127 dB
Frequency Range (-10dB) 39 Hz - 20 kHz
Frequency Response (±3 dB) 50 Hz - 20 kHz
Coverage Pattern 90° x 60°
Amplifier Design Class D
Power Rating 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D) 707mm x 439mm x 365mm (27.8in x 17.3in x 14.4in)
Net Weight 17.69 kg (39 lbs)
Mic Inputs 2
Phantom Power No
EQ 3 Parametric EQs + Hi & Lo Shelf
Effects DSP Presets
Inputs 2 x Balanced XLR-1/4” combination inputs
Outputs 1 x male XLR loop thru out
Enclosure Polypropylene

Tilbehør

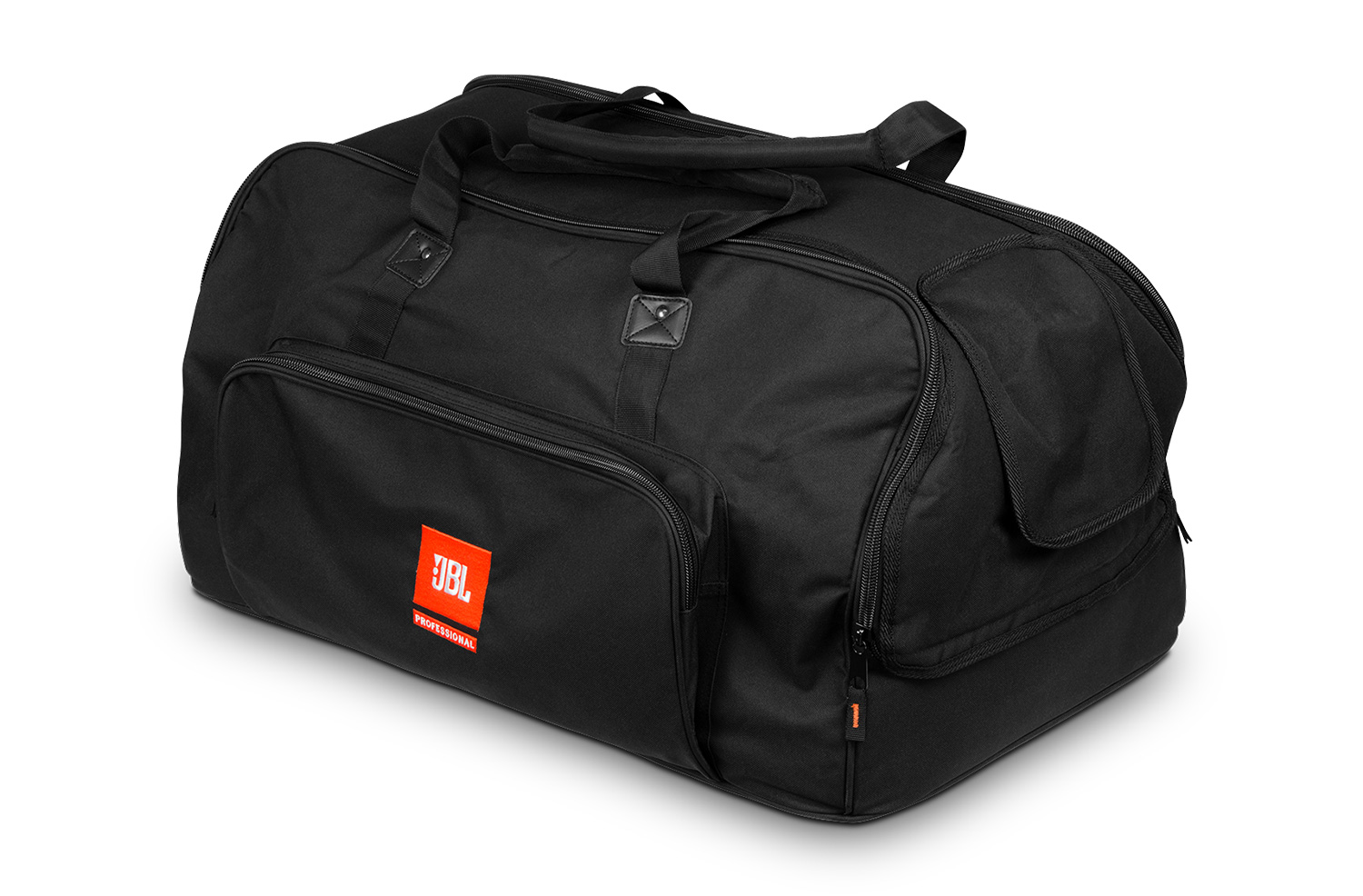

EON615-BAG | Deluxe Padded Cover for the EON615
EON615-BAG Main photo
Større billeder
EON615-BAG detail thumbnail #1 EON615-BAG detail thumbnail #2

Deluxe Carry Bag w/ 10mm Padding & Dual Access Zippers. Includes Two Heavy-Duty Carry Handles, EON615 Handle Access Cover, and Accessory Pocket. Fits EON615.

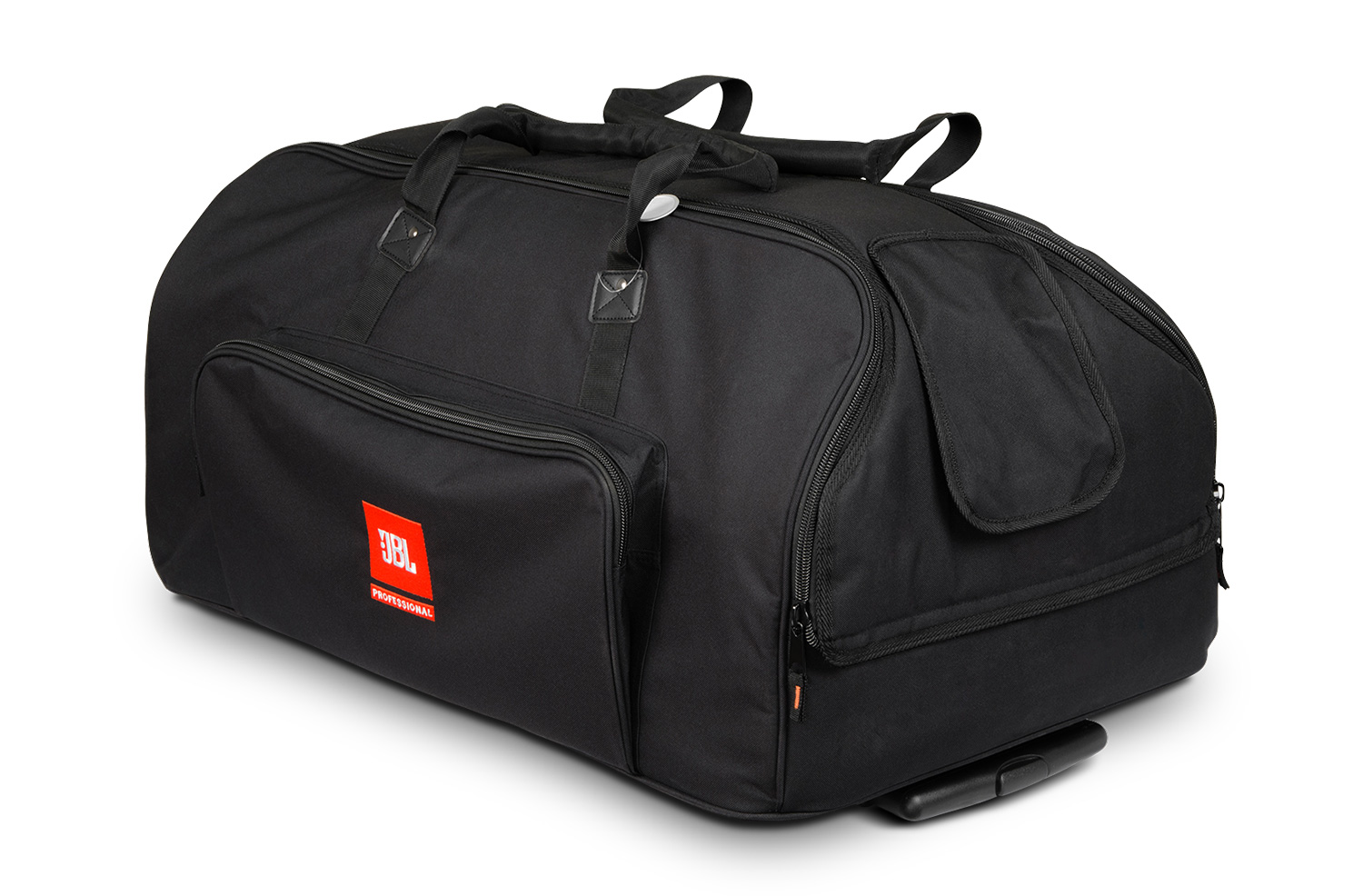

EON615-BAG-W | EON615 Roller Bag
EON615-BAG-W Main photo
Større billeder
EON615-BAG-W detail thumbnail #1 EON615-BAG-W detail thumbnail #2 EON615-BAG-W detail thumbnail #3

Deluxe Roller Bag w/ Wheels & Tow Handle. Heavy Duty Carry Handles. Fits EON 615

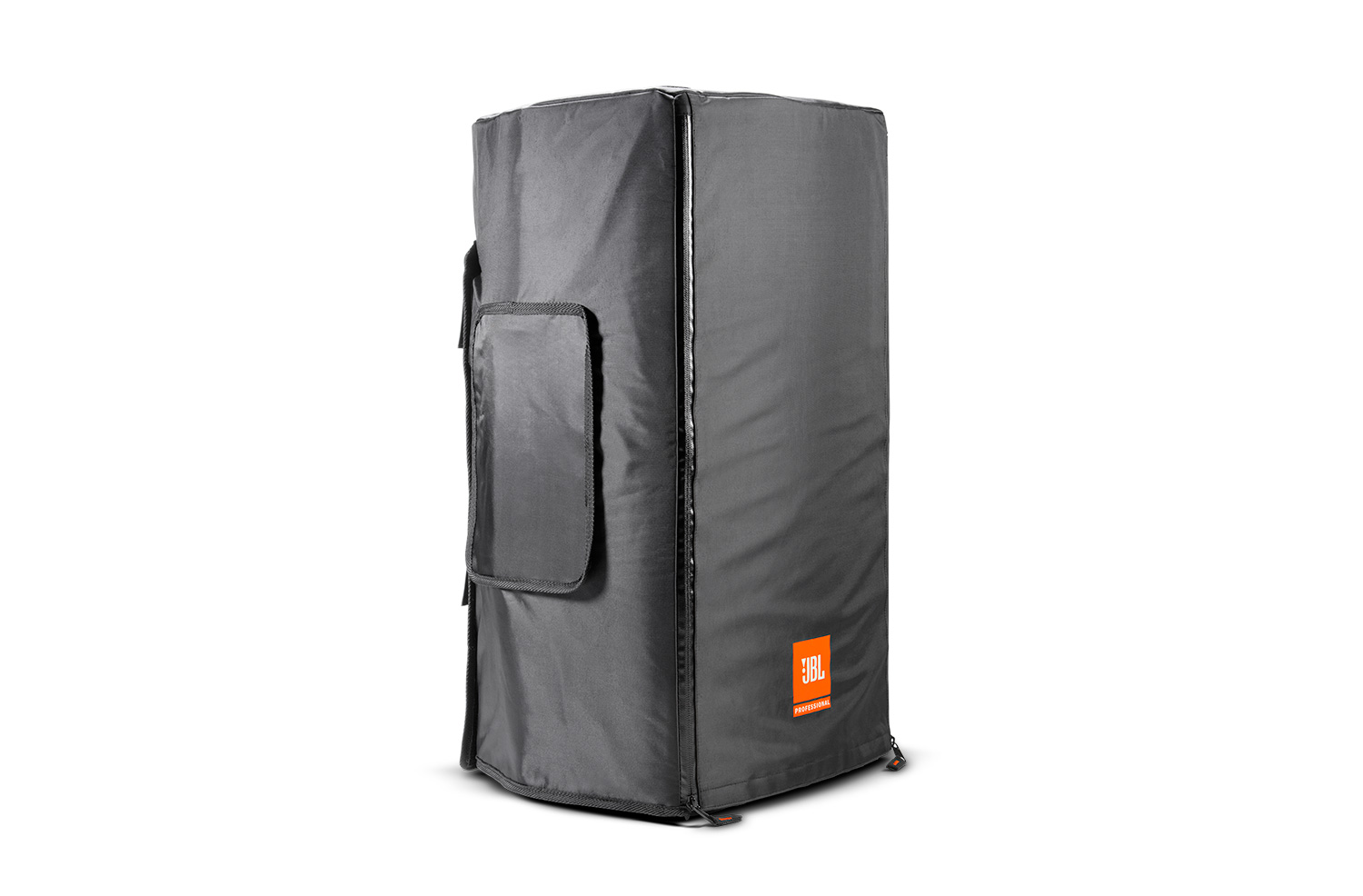

EON615-CVR | Deluxe Padded Protective Cover for EON615
EON615-CVR Main photo
Større billeder
EON615-CVR detail thumbnail #1

Deluxe padded cover for EON615. Water Resistant Black Nylon Exterior, 10mm Padding, Handle Access Openings.

EON15-STRETCH-COVER-BK | Stretchy Black Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-BK Main photo
Større billeder
EON15-STRETCH-COVER-BK detail thumbnail #1 EON15-STRETCH-COVER-BK detail thumbnail #2 EON15-STRETCH-COVER-BK detail thumbnail #3 EON15-STRETCH-COVER-BK detail thumbnail #4

Stretchy Black Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

EON15-STRETCH-COVER-WH | Stretchy White Cover fits all EON 15" Cabinets
EON15-STRETCH-COVER-WH Main photo
Større billeder
EON15-STRETCH-COVER-WH detail thumbnail #1 EON15-STRETCH-COVER-WH detail thumbnail #2 EON15-STRETCH-COVER-WH detail thumbnail #3

Stretchy White Cover. Acoustically Transparent Material. Machine Washable. Includes Carry Bag. Fits EON 15" Speakers.

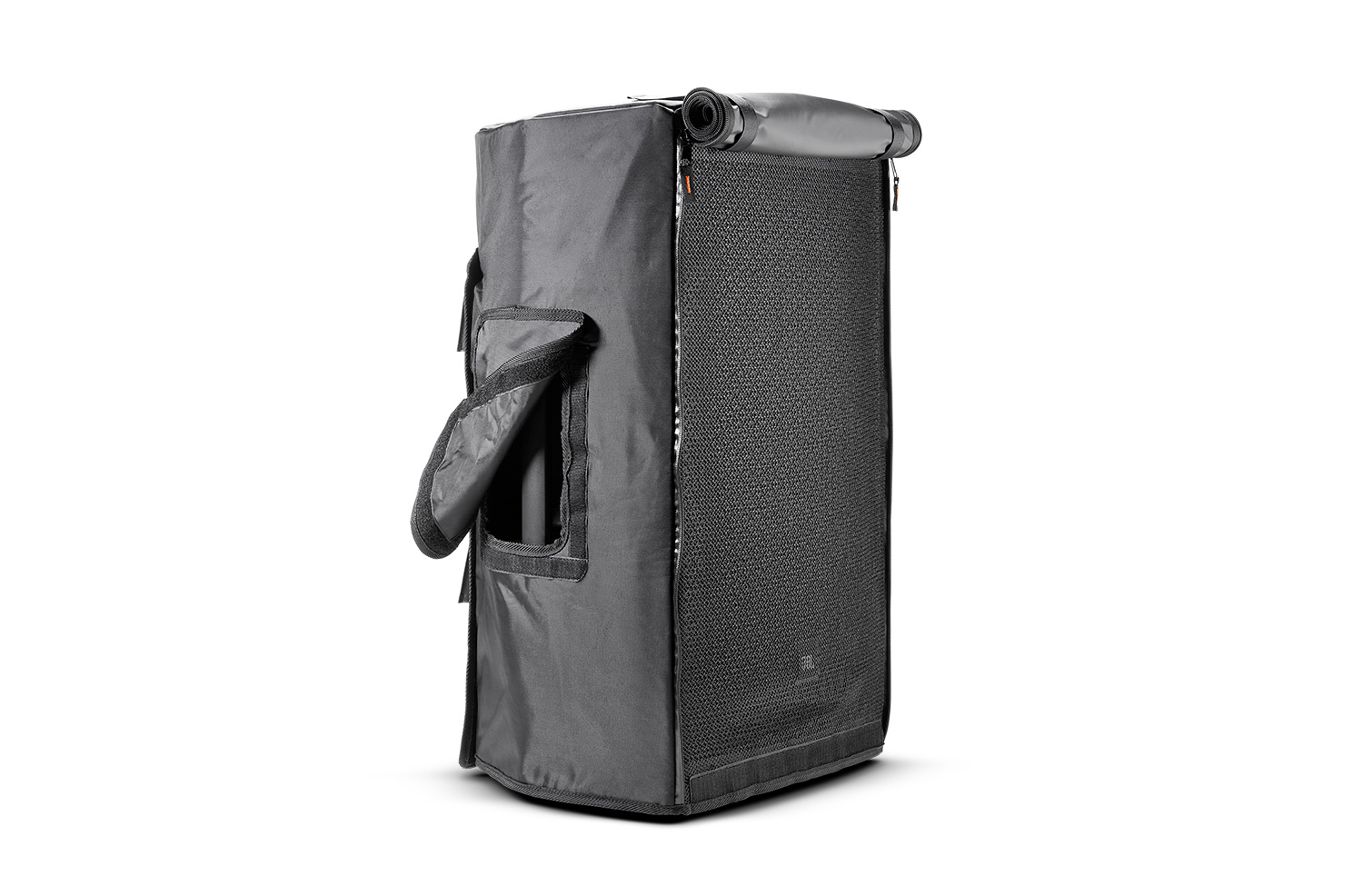

EON615-CVR-WX | Convertible Cover for EON615
EON615-CVR-WX Main photo
Større billeder
EON615-CVR-WX detail thumbnail #1 EON615-CVR-WX detail thumbnail #2 EON615-CVR-WX detail thumbnail #3 EON615-CVR-WX detail thumbnail #4

Convertible Cover for EON615. Allows Full Functionality Of Speaker While Inside Protective Cover. Front Cover Opens to Reveal Loudspeakers, Full Access To Rear Inputs & Carry Handles.

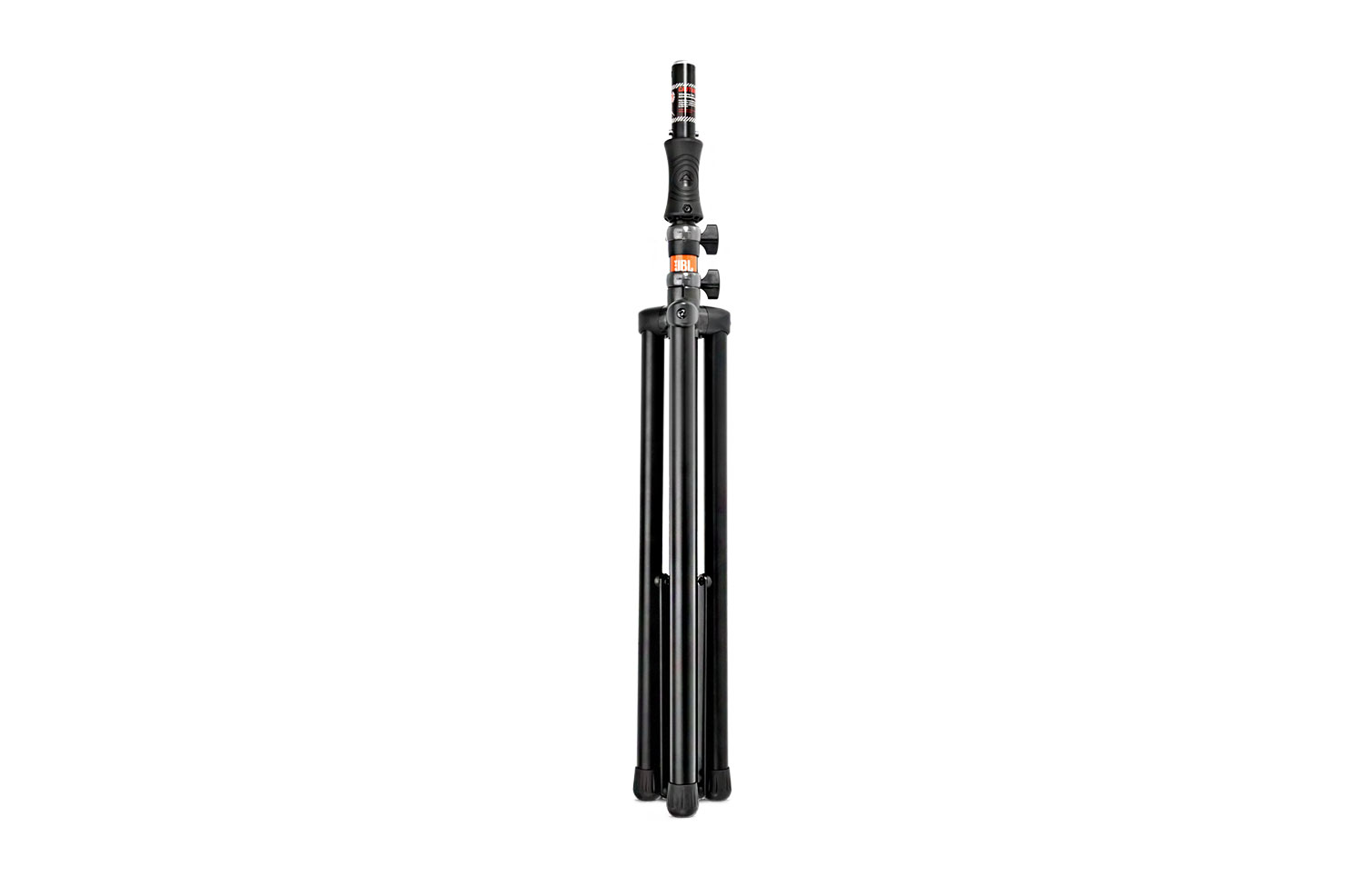

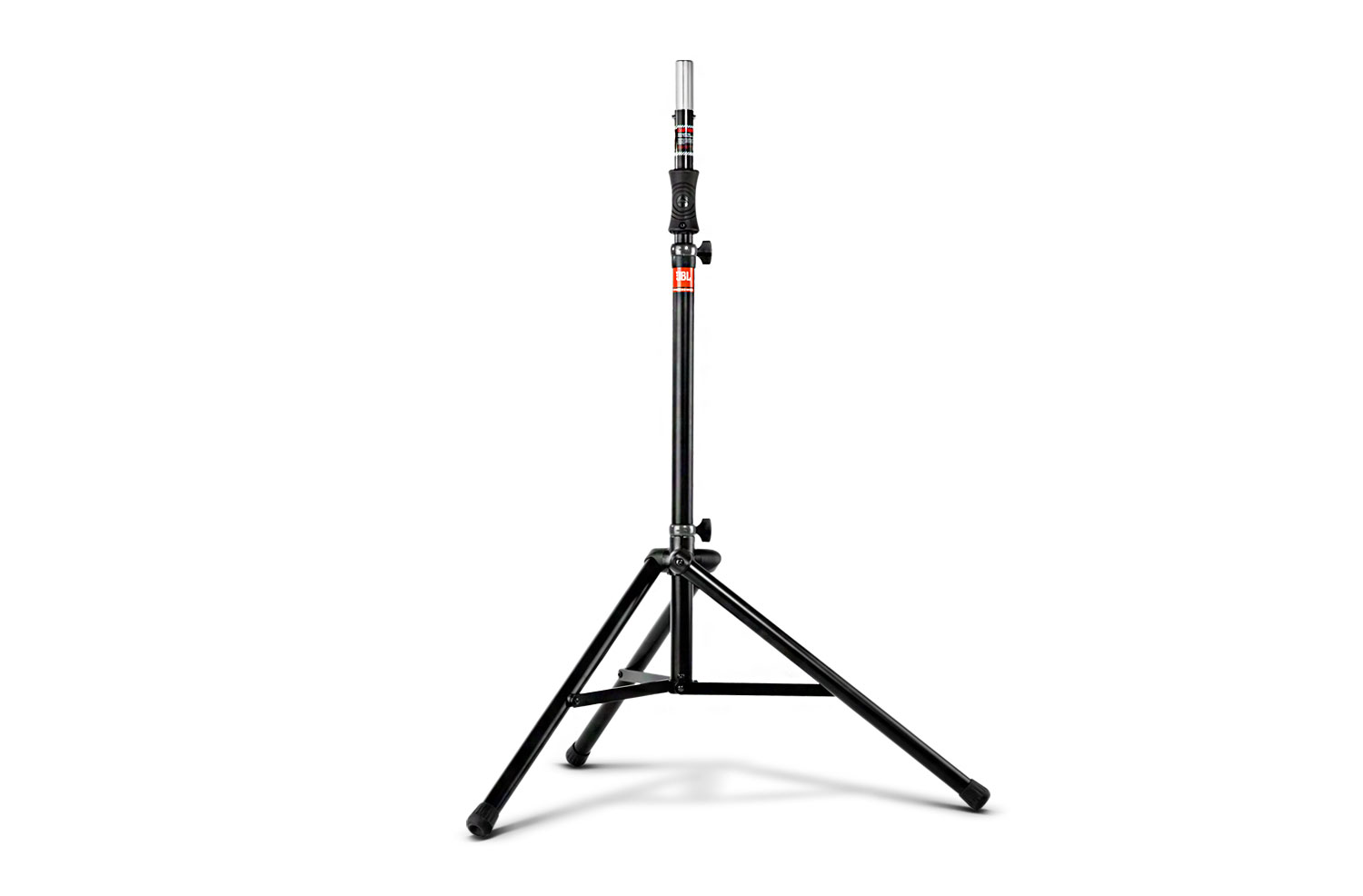

JBLTRIPOD-GA | JBL gasassisteret højttalerstativ
JBLTRIPOD-GA Main photo
Større billeder
JBLTRIPOD-GA detail thumbnail #1 JBLTRIPOD-GA detail thumbnail #2 JBLTRIPOD-GA detail thumbnail #3
Lift-assist aluminiumstativ til højttalere med integreret højttalereradapter. JBLTRIPOD-GA er et utrolig let stativ at bruge takket være det interne pneumatiske stød, der bogstavelig talt løfter højttaleren for dig. Stavets interne stød løfter nemt højttalere på 35 pund og derunder uden indsats fra brugeren.
  • Gasassistance justerbar fra 3'8" (1118MM) til 6'7" (2007MM)
  • Gasassistance stativ, der løfter højttaleren for dig ved hjælp af en intern luftdrevet stød
  • Designet til brug med følgende JBL-modeller; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentation
JBLTRIPOD-MA | JBL Manuel Justerbar Højttalerstativ
JBLTRIPOD-MA Main photo
Større billeder
JBLTRIPOD-MA detail thumbnail #1 JBLTRIPOD-MA detail thumbnail #2

Aluminiums tripod højttalerstativ med sikker låsestift og 150 lbs bærekapacitet. For at hjælpe dig med at løfte din højttaler har vi tilføjet en holdbar løftebøjle på teleskoprøret, så du får noget at skubbe mod når højtaleren løftes til ønsket højde.

  • Justerbar fra 4'2" (1270MM) til 6'5" (1956MM)
  • Manuel justerbar højttaler-stativ
  • Designet til brug med følgende JBL-modeller; JRX200, PRX400, STX800, EON, PRX700, VRX900
Dokumentation

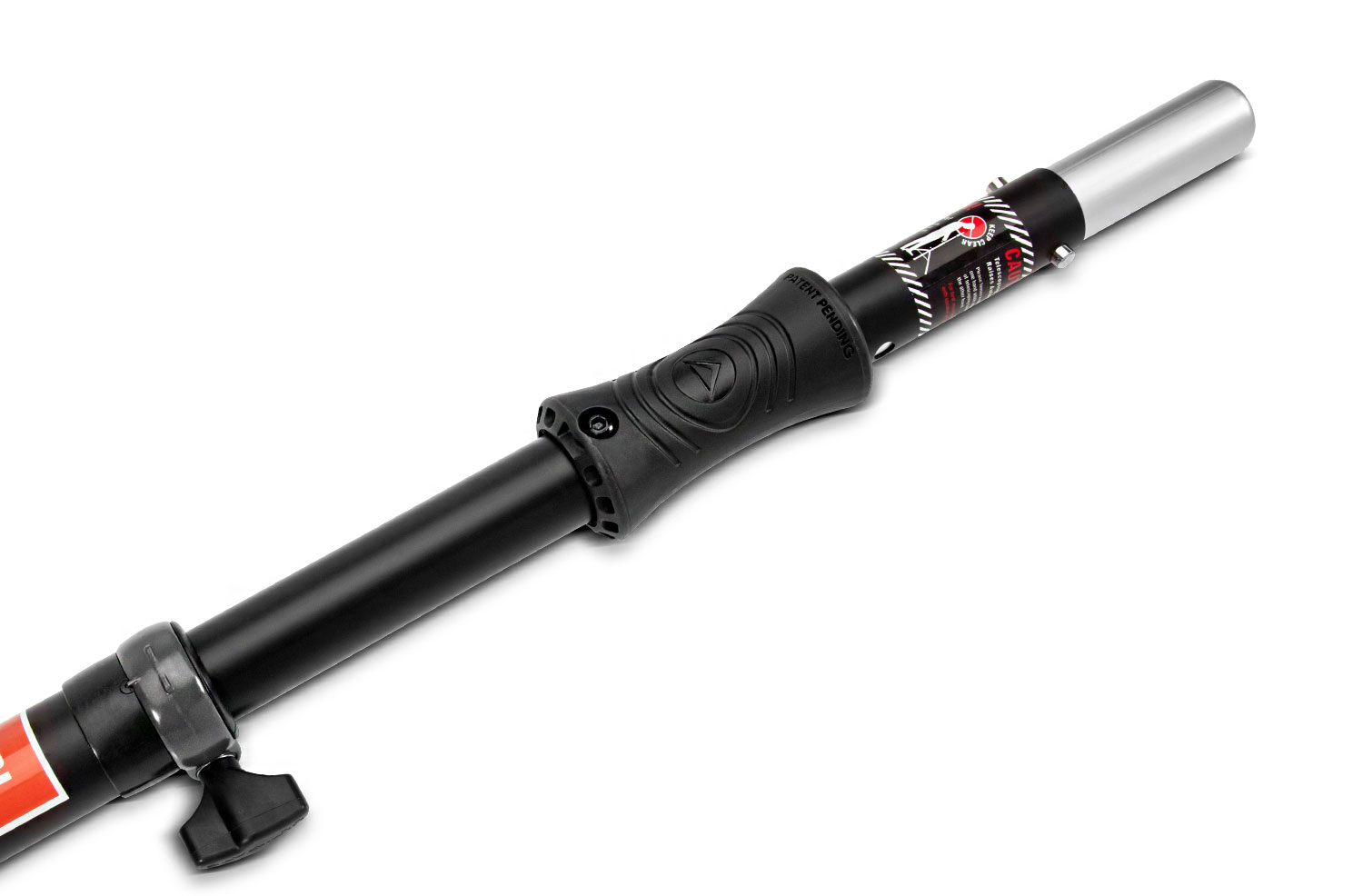

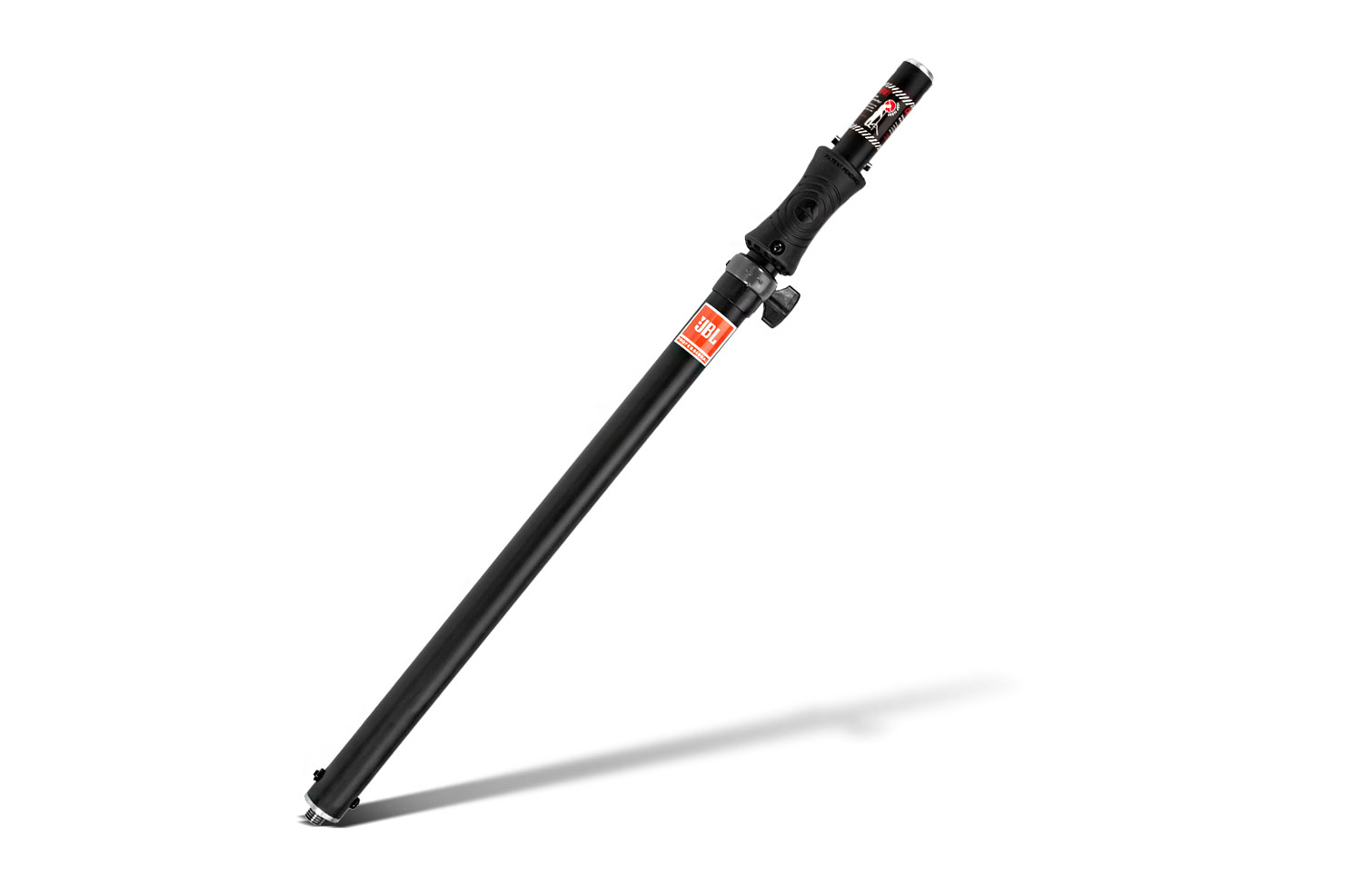

JBLPOLE-GA | JBL gasassisteret højttalerstander
JBLPOLE-GA Main photo
Større billeder
JBLPOLE-GA detail thumbnail #1 JBLPOLE-GA detail thumbnail #2

Gas Assist Speaker Pole med M20 gevind i nedre ende, 38 mm stang og 35 mm adapter. JBLPOLE-GA er det nemmeste højttalerstativ at bruge takket være det interne pneumatiske stød, som bogstaveligt talt løfter højttaleren for dig. Stavens interne stød løfter let højttalere på 35 pund eller mindre uden anstrengelse fra brugeren.

  • Hæv og sænk højttaleren med lethed!
  • Stærk og brugervenlig "Z"-knap
  • Utrolig robust stang
  • M20-gevindstilet stangmontering
  • Passer til de fleste subwoofere med standard M20-polegevind (JBL PRX, VRX, STX og SRX818) - Se venligst individuelle produkter
Dokumentation
JBLPOLE-MA | JBL Manuel justerbar højttalerstativ
JBLPOLE-MA Main photo
Større billeder
JBLPOLE-MA detail thumbnail #1 JBLPOLE-MA detail thumbnail #2

Manuel justerbar højttalerstang med M20-gevindunderende, 38 mm stang og 35 mm. JBLPOLE-MA har en fantastisk højdeindstillingskrave, der er udstyret med en ergonomisk "Z"-knap, som giver behagelig justering. Den stærkeste konstruktion, højdeindstillingskraven forhindrer overtilspænding og brudproblemer forbundet med alle plastikdesign.

  • Letvægt
  • Metal støbte påsætninger
  • M20 Gevindhulle
  • Passer på alle subwoofere med standard M20 paalgevindsystem (JBL PRX, VRX, STX og SRX818) - Se venligst de individuelle produkter for at bekræfte
Dokumentation
