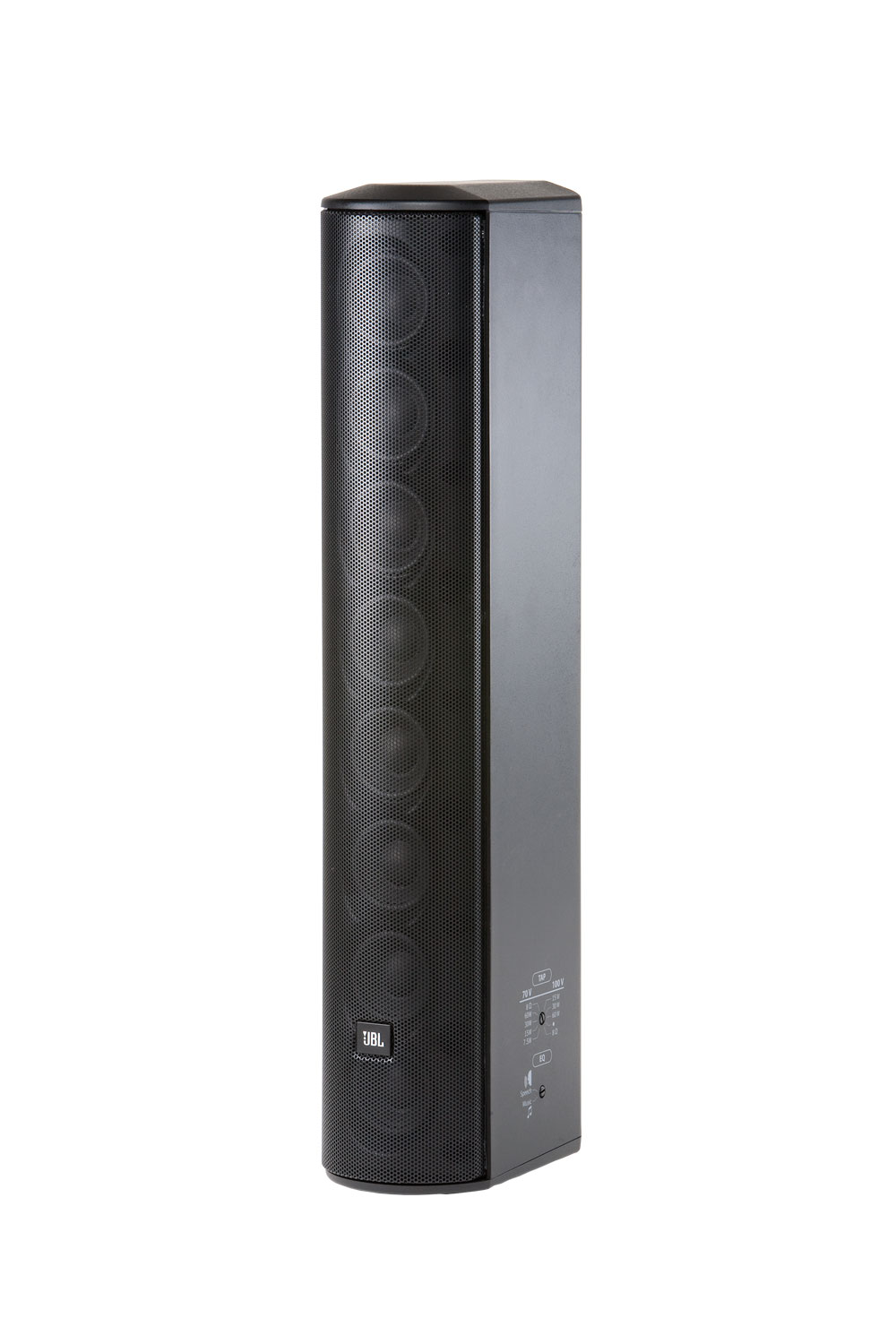

CBT 50LA-1, med Constant Beamwidth Technology™, repræsenterer et gennembrud inden for mønsterkontrol, der anvender analog forsinkelse beam-forming og amplitudetapering for at opnå ensartet vertikal dækning uden den smalle vertikale stråling og udenfor dækning lobing, der er typisk for lige formfaktor passive kolonne højttalere.
| Størrelse | |
|
|
2,37 MB |
| Størrelse | |
|
|
973 kB |
|
|
5,71 MB |
| Størrelse | |
|
|
33,2 kB |
|
|
3,63 MB |
|
|
1,23 MB |
|
|
8,14 MB |
| Størrelse | |
|
|
144 kB |
| Størrelse | |
|
|
3,66 MB |
| Størrelse | |
|
|
2,23 MB |
| Størrelse | |
|
|
58,7 kB |
|
|
1,15 MB |
|
|
440 kB |
|
|
277 kB |
|
|
476 kB |
| Størrelse | |
|
|
17,2 kB |
| Størrelse | |
|
|
237 kB |
|
|
106 kB |
| Størrelse | |
|
|
8,48 MB |
| Størrelse | |
|
|
8,41 MB |
| Størrelse | |
|
|
557 kB |
| Størrelse | |
|
|
305 kB |
| Størrelse | |
|
|
193 kB |
Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.
| Drivers | Eight 50 mm(2 in) Full-Range |
| Frequency Range (-10dB) | 80 Hz – 20 kHz |
| Coverage Angle | Vertical 20° (1.5 kHz - 16 kHz, ±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°) |
| Sensitivity | 93 dB (speech mode, 2 kHz - 14 kHz)89 dB (music mode, 300 Hz - 18 kHz) |
| Impedance | 8 ohms |
| Power Rating | 150W (600W peak), 2 hrs 100 W (400W peak), 100 hrs |
| Maximum SPL (1m) | Speech mode: 115 dB cont ave (121 peak) Music mode: 111 dB cont ave (117 peak) |
| Transformer Taps | 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Color | Black or White (-WH) |
| Insert Points | Ten M6 insert points on back panel. |
| Mounting | Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension. |
| Dimensions (H x W x D) | 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in) |
| Net Weight | 4.1 kg (9.0 lb) |
| Included Accessories | Swivel (pan) / tilt wall bracket |
| Optional Accessories | MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand |
