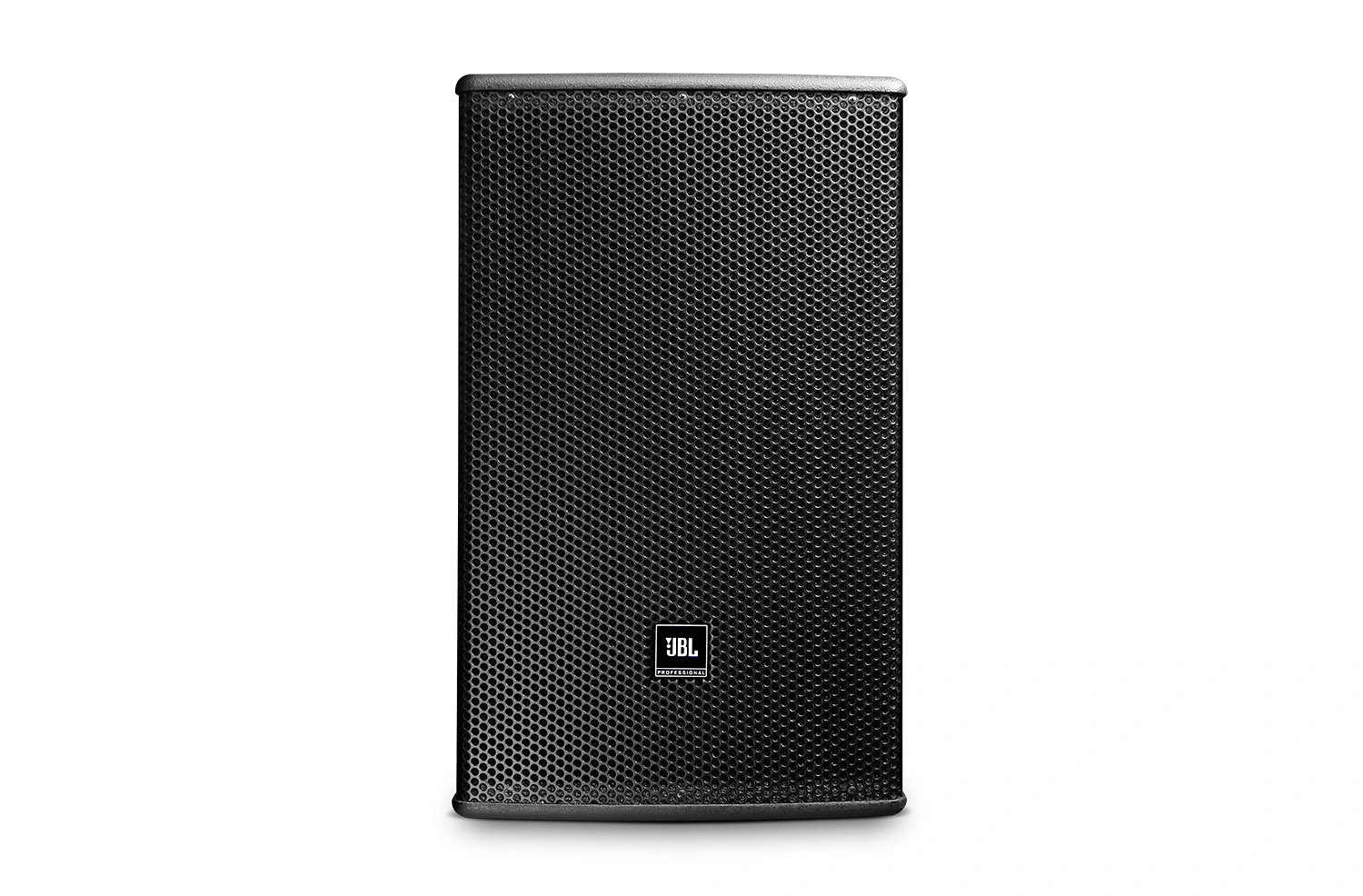

JBL Professional AC599

Større billeder

15-tommer 2-vejs højtaler med 90° x 90° horn

AC599 er et kompakt 2-vejs fuldtone-højttalersystem bestående af én 384 mm (15 tommer) lavfrekvensenhed og én 25 mm (1 tommer) udgang/35 mm (1,5 tommer) stemmesspole-kompressionsenhed. Hornet giver 90° x 90° dækning i lodret og vandret orientering. Høj-hældning passive crossovers minimerer bånd-overlapping og vel-kontrolleret offaxis-respons. Kabinettet er udstyret med M10 gevindede ophængningspunkter. Fire gevindede indsatser på bagsiden af kabinettet muliggør tilslutning af en MultiMount® eller lignende monteringstype. AC599 er en del af JBLs AE Application Engineered Series, en alsidigt brugt familie af højttalere til en bred vifte af faste installationsapplikationer

Funktioner

Robust 15 mm kabinet med sort struktureret finish
384 mm (15 in) LF-transducer
90° x 90° bølgeleder med 25 mm (1 in) udgang og 35 mm (1,5") membran-kompressionsdrivermotor
Doble Neutrik NL4-forbindelser plus skruetermimaler
Flere tilkoblingspunkter for maksimal fleksibilitet

Applikationer

Optrædenseslokaler
Klubber & barer
Gudshuse
Multi-medierrum
Detail- & gastronomilokaler
Præsentationslokaler
Uddannelsesfaciliteter

Downloads

Specifications

	Størrelse	Uploadet
AC599 Spec Sheet opdateret: apr 2019	462 kB	apr 2019

Brochures

	Sprog	Størrelse	Uploadet
Loudspeakers for Sports Facilities opdateret: jul 2024		5,71 MB	jul 2024

CAD Drawings

	Version	Størrelse	Uploadet
AE Expansion Series Customer Drawings version 1.0, opdateret: mar 2025	1.0	5,73 MB	mar 2025
AE Expansion Series Brackets Customer Drawings version 1.0, opdateret: mar 2025	1.0	438 kB	mar 2025

Simulation Data

	Version	Størrelse	Uploadet
AE Expansion Series - EASE GLL version 1.0, opdateret: mar 2025	1.0	315 kB	mar 2025
AE Expansion Series - CLF Files version 1.0, opdateret: mar 2025	1.0	785 kB	mar 2025

Declaration of Conformity

	Version	Sprog	Størrelse	Uploadet
AE Expansion Series - EU Declaration of Conformity version 1.0, opdateret: mar 2025	1.0		76 kB	mar 2025

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (-10dB)	60 Hz - 20 kHz
Frequency Response (±3 dB)	75 Hz - 18 kHz
System Sensitivity (1w @ 1m)	98 dB
Nominal Impedance	8 ohms
Maximum SPL (1m)	122 dB (128 dB peak)
System Power Rating	350W (1400W peak), 2 hrs (AES rated) 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern	90° x 90° (H x V)
Crossover	1.5 kHz
LF Driver	1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil
HF Driver	1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Input Connector	Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure	15 mm multi-ply hardwood plywood
Grille	Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish	Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment	14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, overhead suspension bracket, and wall-mount bracket
Crossover Modes	Passive
Nominal LF Driver Impedance	8 ohms
Nominal HF Driver Impedance	8 ohms
Net Weight (each)	19.7 kgs. (43.4 lbs.)
