3181F

PROFESSIONEL HØJTYDENDE BIOGRAF-SUBWOOFER

3181F

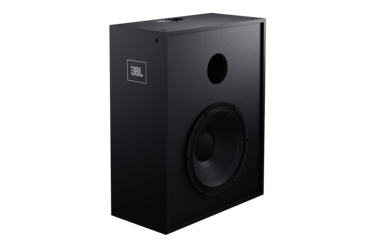

JBL 3181F biograf-subwooferen, del af JBL Cinema Series, leverer troværdighed og ydeevne, som er synonymt med JBL-navnet, til en konkurrencedygtig pris for omkostningsbevidste teateroperatører, der ønsker at tilbyde en premium lydoplevelse.

3181F med 650 watt leverer rumfyldende lavfrekvente toner til en række biograf-konfigurationer, herunder Dolby Atmos og DTS:X-installationer. 3181F fungerer problemfrit med hele JBL Cinema Series, som omfatter to 3-vejs skærmlystalere og en surroundlytaler. Kombiner Cinema Series-højttalere med JBL CPi2000 biografprocessor og Crown XLC Series-forstærkere for at opbygge en fuldt integreret JBL biograf-lydløsning.

Funktioner

  • Lavt dybde på 14,97 tommer (355 mm) sparer plads bag skærme

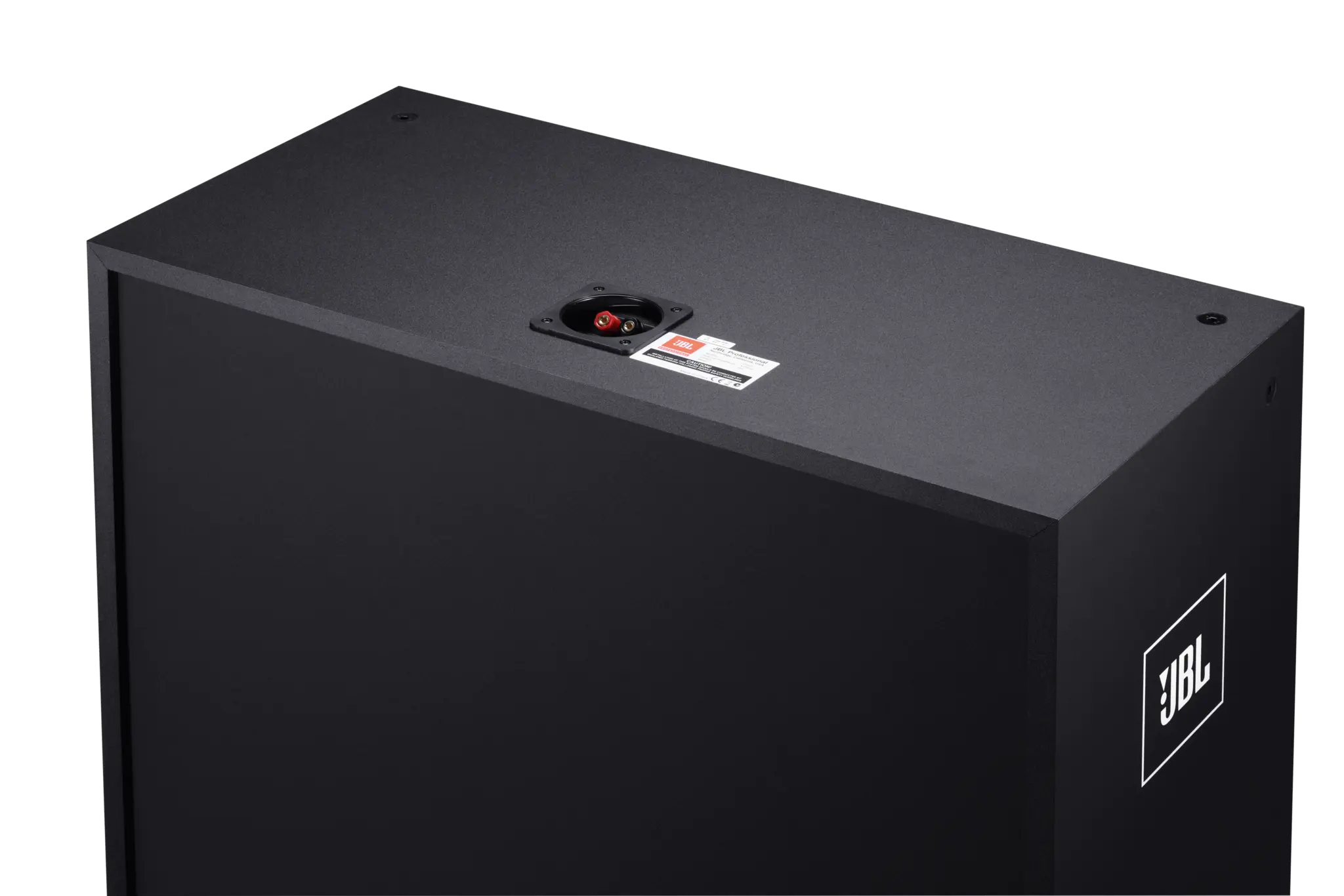

  • Forbindelser er monteret på kabinet-toppen for at bevare minimalt dybde
  • Indbyggede monteringspunkter letter vægmontering til immersive lydinstallationer såsom Dolby Atmos og DTS:X
  • Bindingpost-indgangsforbindelser er konsistente med andre JBL-biografhøjttalere og nemme at tilslutte
  • Footprint matcher både JBL 3153 og 4253-skærmhøjttalere samt C200-biografhøjttalerserien for at opbygge komplette systemløsninger
  • 4-ohm impedans; kan drives af Crown XLC Series-forstærkere
  • 650 W nominel effekt
  • 132 dB spidsværdi SPL
  • Frekvensrespons: 30 Hz–500 Hz (-10 dB) (4π)

Flere detaljer

Premium Sound Without the Premium Price
With the Cinema Series, it’s never been easier to step into the stunning sound of a JBL cinema system. The Cinema Series 3181F subwoofer is engineered and built to the same standards of all other JBL cinema products, providing powerful, punchy low-end coverage in the 30–500 Hz range; pair them with Cinema Series 3153 and 4253 screen arrays and 8102 surrounds for a complete solution.

Rock-Solid and Reliable
Trust JBL Cinema Series speakers and subs to provide peak performance throughout the life of your investment: Systems are designed for superior overall efficiency; transducer-protection circuitry ensures long-term stability.

Deploy With Ease, Any Way You Please
The Cinema Series is designed for streamlined system setup and operation in a range of configurations. 3181F subwoofers operate in 4-ohm mode, enabling them to be driven with Crown XLC Series amps. Hardware is engineered for maximum versatility, with enclosure-top input terminals and binding-post connectors.

Monitor System Health
Accurate diagnostics help keep your system running at peak performance: Crown XLC amplifiers monitor the status of amplification and speaker loads through third-party control and TMS systems when used with the JBL CPi2000 processor; front-panel indicators monitor key statistics such as signal, clip, bridged operation, power standby and fault.

Build an Integrated Sound System
Complete your JBL cinema sound system with the JBL CPi2000 cinema processor, which provides audio enhancement including DSP, room EQ tuning, volume control and system fault detection. The JBL CPi2000 processor includes Cinema Series speaker presets for better sound and performance and easier deployment, and can send amplifier and speaker status to a central TMS (Theater Management System) control system.

Downloads

Specifications
  Størrelse Uploadet
file type icon 3181F Dimensional Measurements
opdateret: maj 2020
923 kB maj 2020
file type icon 3181F Spec Sheet
opdateret: maj 2020
130 kB maj 2020
Drawings 2D/3Ds
  Størrelse Uploadet
file type icon 3181F Customer Drawing 2D (DWG)
opdateret: jan 2021
350 kB jan 2021
file type icon 3181F Customer Drawing 2D (PDF)
opdateret: jan 2021
104 kB jan 2021
Spec Sheets
  Sprog Størrelse Uploadet
zh  219 kB mar 2021

Hvis nogle af linksene ovenfor resulterer i mærkelige tegn i din browser, skal du højreklikke på filen for at gemme den på din computer.

Reservedele og service

Specifikationer

Frequency Range (±3 dB) 38 Hz - 100 Hz
Frequency Range (-10dB) 30 Hz - 500 Hz
Power Handling (2Hr AES Rating) 650 W
Sensitivity 95 dB
Maximum SPL (1m) 132 dB
Nominal Impedance 4Ω
Net Weight (each) 93 lbs (42 kg)
